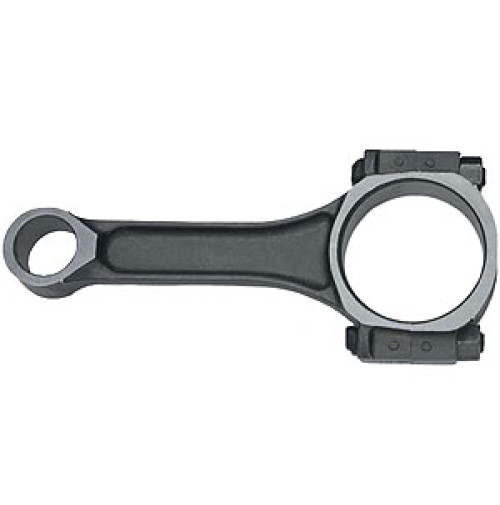

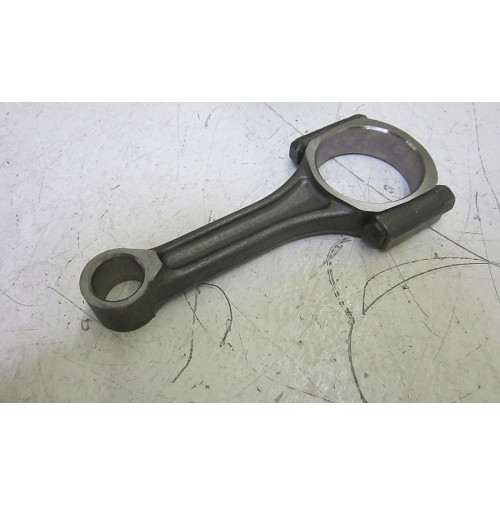

Chevrolet Performance - Connecting Rod I-Beam PM- For GM 5.0L 305, 5.7L 350, 377 383 6.2L - For Small Block V8 96 Metric Drain Plug - 10108688 - CSE
> Connecting Rod
> I-Beam PM
> 5.700''
> 1/pkg
Small Block Chevy
Tech Specs:
> 2.100 crank journal
> 0.927 pin diameter
> 3/8 bolt
> Press fit pin
> High-quality, powdered metal (PM) connecting rods
> For competition or street applications below 500 horsepower
> Replaces the old "pink rods" and are the same rods used in LT1 and LT4 Corvette engines
Specifications:
> Advertised Horsepower Rating (hp) --->500 hp
> Advertised RPM Rating ----> 6,500 rpm
> Approximate Connecting Rod Weight (g) ----> 600
> Cap Retention Style ----> Through-bolt
> Clearanced for Stroker ----> No
> Connecting Rod Beam Style ----> I-beam
> Connecting Rod Bolt Brand -----> GM Performance Parts
> Connecting Rod Bolt Head Style ----> Hex head
> Connecting Rod Bolt Material -------> 4740 chromoly alloy
> Connecting Rod Finish -----> Shot-peened
> Connecting Rod Length Center to Center (in.) ------> 5.7
> Connecting Rod Material -------> Forged 4340
> steelFastener Yield Strength (psi) ------> 140,000
> Magnafluxed -------> Yes
> Quantity ---------> Sold individually
> Remanufactured ---------> No
> Weight Matched Set ---------> Yes
> Wrist Pin Style --------> Press-fit
> Manufacturer's Part Number ------> 10108688
