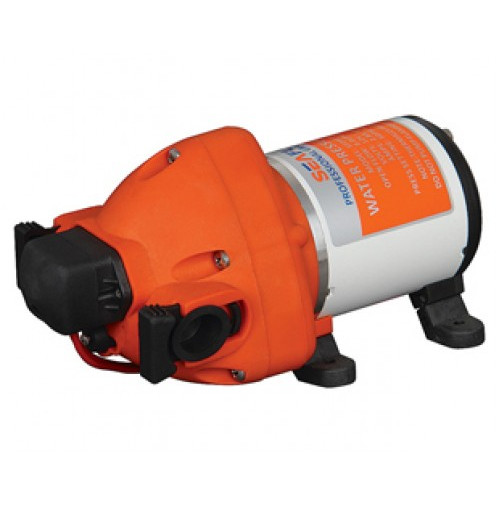

Diaphragm Pump - 11LPM - DP1-029-060-32 :
Features:
- Maximum torque and operating efficiency
- Higher operating pressure and/or lower amperage than competitive pumps Long life, no leaks
- Low noise; acid, alkali and corrosion resistant
- Run dry with no problem
Functions:
3 pump chambers positive membrane pump volume for smooth and silent operation.
Power supply: 12 or 24 V
Maximum pumping volume: 8,0- to 11, 0 l./min.
Maximum pump Pressure: 4,2 bar
Dry running no problem
Thermal protection
Model | Pump Volume
| Pump pressure
| Volt
| Engine load
| Motor charge
|
SFDP1-029-060-32 | 11.0 l./min
| 60 / 4.2
| 12 V
| 5.0 A
| 7.0 A
|
SFDP2-029-060-32
| 11.0 l./min
| 60 / 4.2
| 24 V
| 2.5 A
| 3.5 A
|
