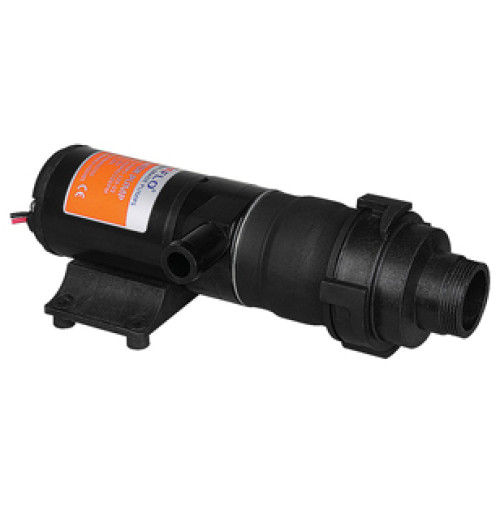

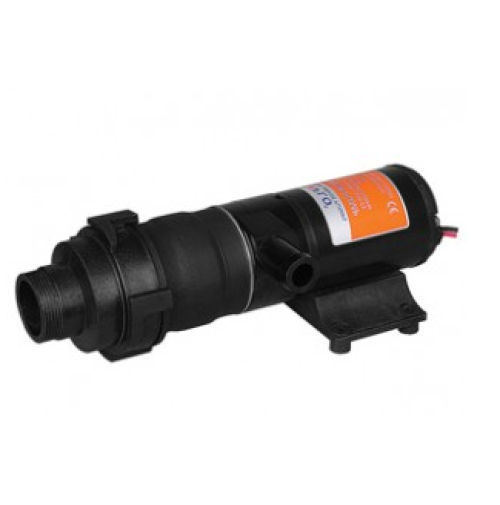

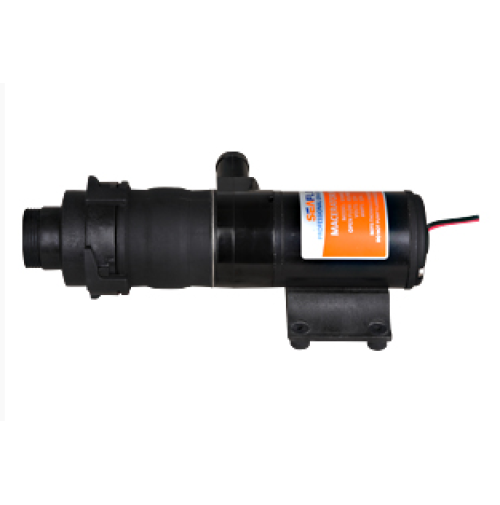

Macerator Pump 02 Series - LPM 45 - MP1-120-02 :
Features & Benefits:

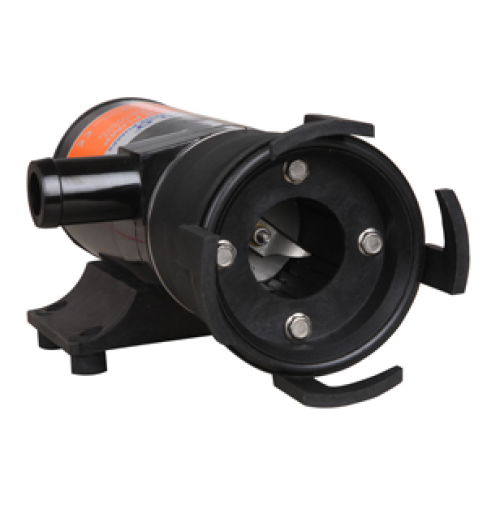

Dual Blade and Housing
Seamless Shell Design
Thermally Protected Motor
High Quality Efficient Motor
Can't Run Dry

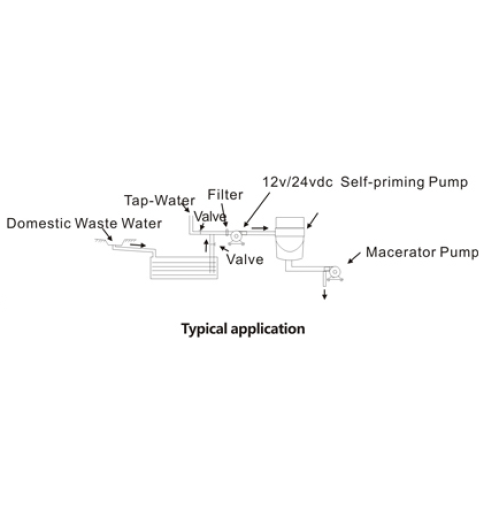

Typical Applications:
RV & Campers
Boats & Mobile Kitchenware
Industrial
Marine
PUMP:
Liquid Temperature
140°F (60°C) Max.
Priming Capabilities
Not needed flooded suction
Power
12 amps max current draw
Max Pressure
Not needed

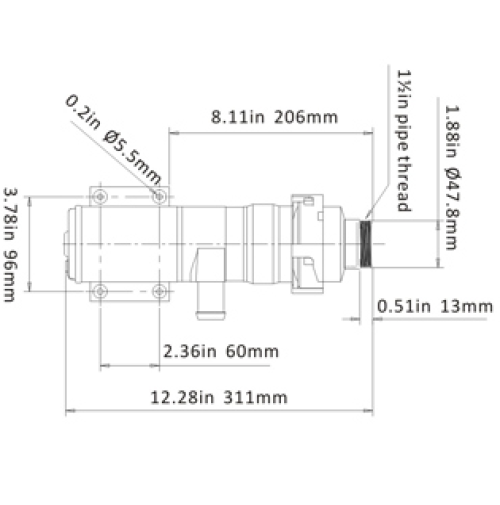

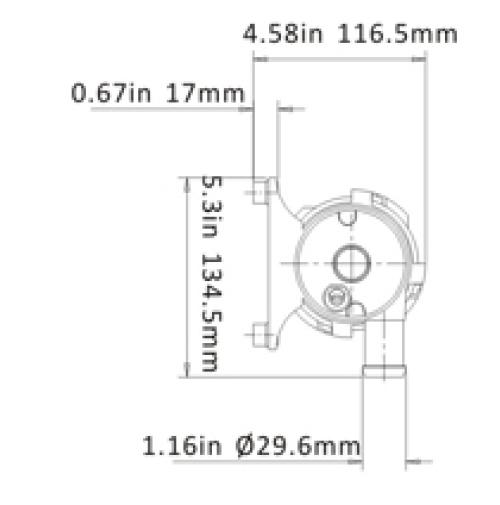

Inlet/Outlet Ports
Inlet: 1-1/2" MNPT
Outlet: 1" Hose Barb
Weight
4.9 lbs (2.24 kg)
MOTOR:
Type
High quality seamless design that is thermally protected
Leads
Wire leads
Temperature Limits
140°F (60°C) Max.
Duty Cycle
Intermittent
Voltage
12v/24v
Model
| GPM/LPM
| Dimensions
| Impeller
| Ports
| Lead
| Molded
| Voltage
| Max Draw(A)
|
SFMP1-120-02
| 12/45.0
| 13.98"x5.24"x4.33" 355x133x110mm
| Rubber & copper
| 1-1/2" MNPT 1" Hose Barb | Yes
| N/A
| 12V
| 12.0
|
SFMP2-120-02
| 12/45.0
| 13.98"x5.24"x4.33" 355x133x110mm
| Rubber & copper
| 1-1/2" MNPT 1" Hose Barb | Yes
| N/A
| 24V
| 7.0
|
