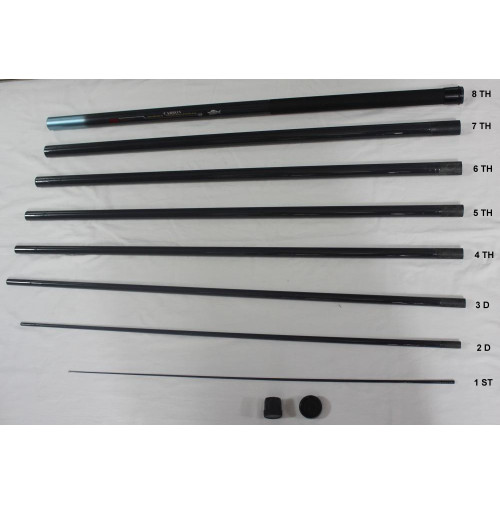

Parts for Telescopic Fiber Classic 2 Rod - 2003-00X:
These parts will fit perfect the telescopic rod of classic 2 series.
Blank in glass fiber.
Please find below the outer diameter of each pieces
Reference Number
| Model Name
| Top Diameter in mm
| Bottom Diameter in mm
| Weight gr
| Length Cm
|
2003-001 | The first from the tip | 2.20 | 6.96 | 10 | 85 |
2003-002 | The second from the tip
| 7.90 | 14.85 | 30 | 102
|
2003-003 | The Third from the tip
| 16.03 | 19.86 | 65 | 110
|
2003-004 | The fourth from the tip
| 21.21 | 23.85 | 90 | 110
|
2003-005 | The fifth from the tip
| 25.83 | 27.80 | 125 | 110
|
2003-006 | the sixth from the tip
| 29.42 | 31.74 | 150 | 110 |
2003-007 | the Seventh from the tip | 33.92 | 35.40 | 190 | 110 |
2003-008 | The eight from the tip
| 37.60 | 39.14 | 230 | 110 |
|
|
|
|
|
|
