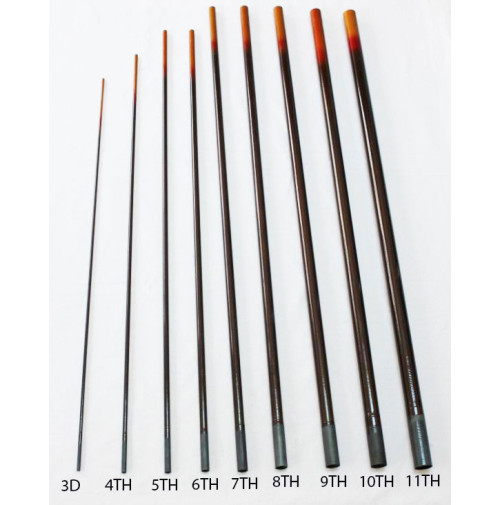

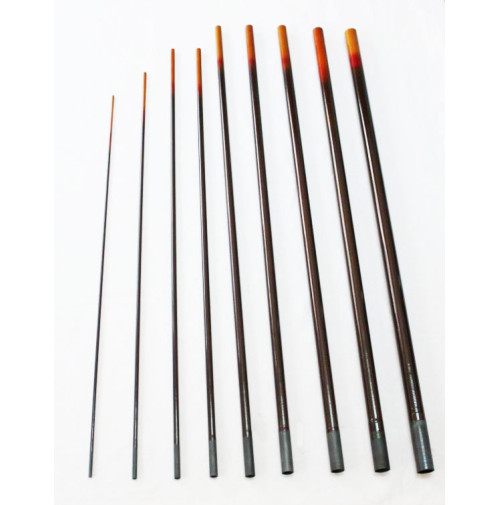

Parts for Telescopic " Magic " Rod - 2500-003X:
These parts will fit perfectly the Carbon telescopic " Magic " Rods .
Please find below the outer diameter of each piece
Reference Number
| Model Name
| Top Diameter in mm
| Bottom Diameter in mm
| Weight gr
| Length Cm
|
2500-003 | The third from the tip
| 4 | 4.50 | 5 | 57 |
2500-004 | The fourth from the tip
| 5.19 | 6 | 5 | 62 |
2500-005 | The fifth from the tip
| 7 | 7.80 | 5 | 68 |
2500-006 | The sixth from the tip
| 8.67 | 10 | 5 | 68 |
2500-007 | The seventh from the tip | 11 | 12.50 | 10 | 73 |
2500-008 | The Eight from the tip | 13.60 | 15.16 | 10 | 73 |
2500-009 | The ninth from the tip
| 16 | 17.65 | 15 | 73 |
2500-010 | The tenth from the tip
| 18.45 | 20.23 | 15 | 73 |
2500-011 | The eleventh from the tip | 21.70 | 22.74 | 20 | 73 |
