MS-CL602

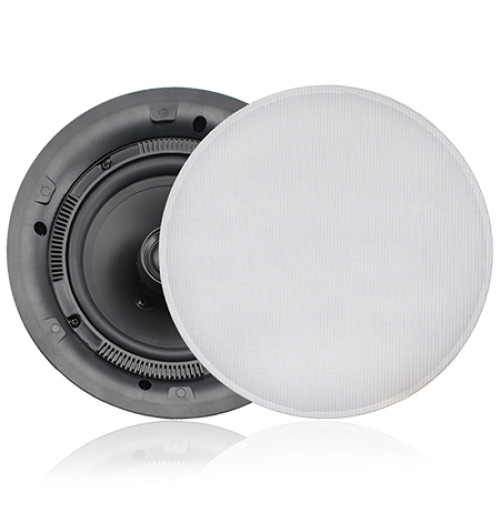

Introducing the MS-CL602 In-Ceiling Speakers.
Designed to complement the interior of your vessel, with a discretely stylized flush mount profile, perfect for either in-ceiling or wall mount installation.
Featuring a sleek Ice-White magnetic grille, The MS-CL602 does not require any additional fasteners or adhesive mounts.
Once placed into the cut out area, the built-in mounting tabs will clasp the edges of the cut out, keeping the speaker in place.
Sophisticated engineering has resulted in superb sound quality from a shallow mount basket, with 6-Ohm Impedance, the MS-CL602 will integrate with a variety of source units.
Featuring a high quality polypropylene cone with a peak power output of 120 Watts ensures crisp clear audio is enjoyed thoroughly by all.
User Manual English
Mounting Dimensions
Fusion Electronics |
Cone Material |
Polypropylene with rubber surround |
Cut out diameter |
203.5mm (8") |
Depth (excluding grille) |
75.63mm (3") |
Depth (including grille) |
79.3mm (3-1/8") |
Efficiency (1W/1M) |
89 Db |
Frequency Response |
(-10dB/-3dB) 50Hz - 20kHz/85Hz - 20kHz |
Impedance |
6 Ohm |
Mounting Depth |
77.6mm (3-1/16") |
Peak Power |
120 Watts |
Rated Power |
40 Watts |
Speaker Diameter |
232.2mm (9-1/8") |
Tweeter Size |
25mm 1" |
Tweeter Type |
Silk Dome |
Weight (Net) |
1.65kg 3.6lbs |
Woofer Size |
165mm 6.5" |
