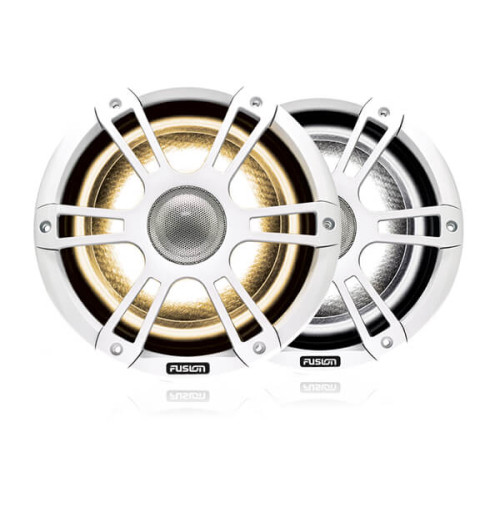

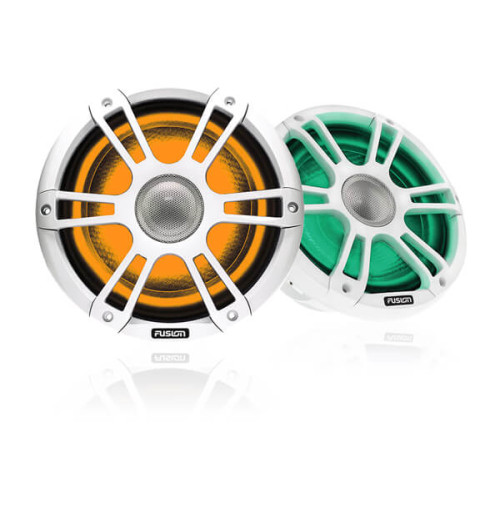

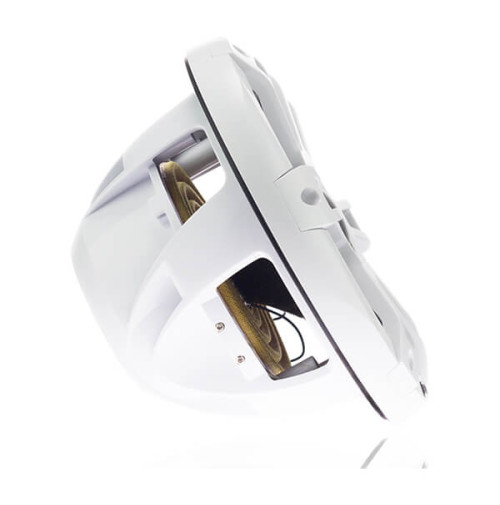

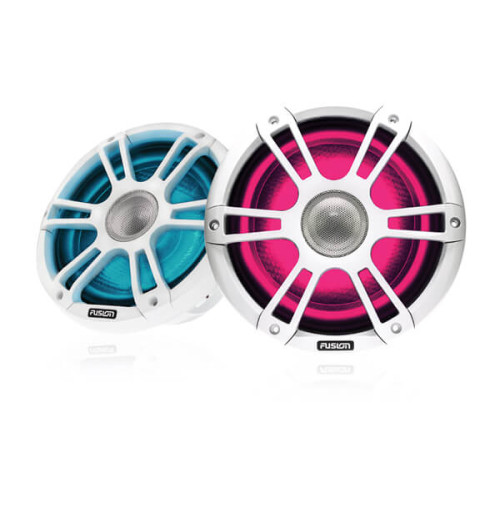

7.7" 280 Watt Coaxial Sports White Marine Speaker with CRGBW LED Lighting - SG-FL772SPW - 010-02433-10 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-02433-10
- Availability: In Stock
- $419.82
- Ex Tax: $419.82
7.7" 280 Watt Coaxial Sports White Marine Speaker with CRGBW LED Lighting - 010-02433-10 - Fusion :
WHAT IN THE BOX:
- One pair of speakers (based on what you select)
- Documentation
| Fusion Electronics | |
| LED Supply Voltage | 10.8-16 VDC (sports-style only) |
| Mounting Dimensions | |
| Mounting depth clearance | 7.7" speaker: 3.39" (86 mm) |
| Mounting diameter clearance | 7.7" speaker: 6.14" (156 mm) |
| Optimum enclosure recommendations | |
| Port diameter | 3" (76 mm) |
| Port length | 7.7" speaker: 6.3" (160 mm) |
| Ported vented enclosure volume (lined with absorption material) | 7.7" speaker: 1.06 cubic ft (30 L) |
| Sealed enclosure volume (fully filled with absorption material) | 7.7" speaker: 0.71 cubic ft (20 L) |
| Product Specifications | |
| Cone Material | CURV cone with rubber surround |
| Configuration | Coaxial |
| Frequency Response | 7.7" speaker: 60 Hz - 22 kHz |
| LED Load Current at 14.4V dc | 300 mA (sports-style only) |
| Nominal Impedance | 4 ohms |
| Peak Power (Watts) | 7.7" speaker: 280 W |
| Recommended Amplifier Power (RMS) | 7.7" speaker: 25-120 W/Ch |
| RMS POWER (WATTS) | 7.7" speaker: 100 W |
| Speaker Size | SG-FL772SPW / SG-FL772SPC / SG-F772W: 7.7" |
| Tweeter Type | Silk dome |
| Voice Coil Diameter | 7.7" speaker: 1.4" |
| Warranty | 3 years |
| Water and Dust Resistance (IPX rating) | IP65 |
| Physical & Performance | |
| Compass-safe Distance | 7.7" speaker: 141" (358 cm) |
| GENERAL | |
| LED lighting | Yes - CRGBW (sports-style only) |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| Physical dimensions | 7.7" sports speaker: 7.72" x 4.31" (196 x 111 mm) |
| Sensitivity | 7.7" speaker: 91 dB |
-199x201.png)
.png){kind=link}
Tags: subwoofers, audio systems, marine entertainment, waterproof, round
