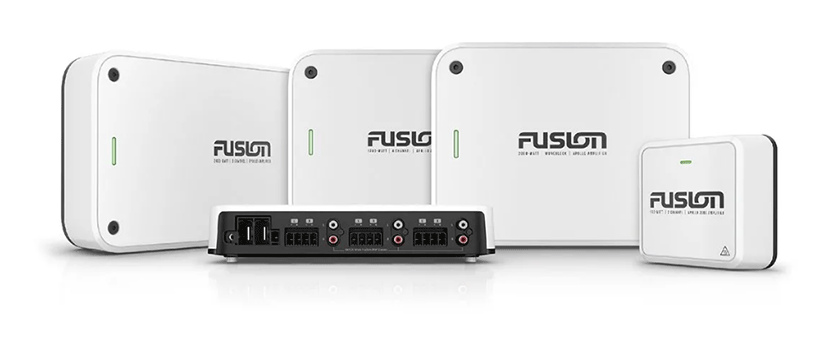

Apollo Marine Amplifiers - Monoblock Marine Amplifier (650-watt RMS) - 010-02284-15 - Fusion
- Brand: Fusion Electronics
- Product Code: 010-02284-15
- Availability: In Stock
- $801.80
- Ex Tax: $801.80
Apollo Marine Amplifiers - Monoblock Marine Amplifier (650-watt RMS) - 010-02284-15 - Fusion:
IN THE BOX:
Apollo Monoblock Amplifier
One Apollo monoblock amplifier
One mounting bracket
One power connector
One speaker connector
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
Important safety and product information (ISPI)
Apollo 4 Channel Amplifier
One Apollo 4 channel amplifier
One mounting bracket
One power connector
Two speaker connectors with high power mode adapters
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
ISPI
Apollo 6 Channel Amplifier
One Apollo 6 channel amplifier
One mounting bracket
One power connector
Three speaker connectors with high power mode adapters
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
ISPI
Apollo 8 Channel Amplifier
One apollo 8 channel amplifier
One mounting bracket
One power connector
Four speaker connectors with high power mode adapters
Four 8-guage, flat head self-tapping screws
Four 8-guage, pan head self-tapping screws (for mounting bracket)
Four screw covers
Mounting template
Installation instructions
ISPI
Apollo Zone Amplifier
One Apollo zone amplifier
One mounting bracket
Three 6-guage, self-tapping screws
Wiring loom
Installation instructions
ISPI
| Appearance and performance | |
| Weight | Monoblock/4-Channel: 4.85 lbs (2.2 kg) 6-Channel: 5.95 lbs (2.7 kg) 8-Channel: 6.94 lbs (3.15 kg) Zone: 1.01 lbs (460 g) |
| GENERAL | |
| CHANNELS | Monoblock/4/6/8/Zone |
| Operating temperature range | 32° to 122° F (0° to 50° C) |
| PHYSICAL DIMENSIONS (DEPTH) | Monoblock/4/6/8-Channel: 1.75" (45 mm) Zone: 1.57" (40 mm) |
| PHYSICAL DIMENSIONS (HEIGHT) | Monoblock/4/6/8-Channel: 7.06" (180 mm) Zone: 3.94" (100 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | Monoblock/4-Channel: 9.25" (235 mm) 6-Channel: 11.69" (297 mm) 8-Channel: 14.13" (359 mm) Zone: 3.94" (100 mm) |
| Warranty | 3 years |
| Water and dust rating | Monoblock/4/6/8-Channel: IPX2 Zone: IPX7 |
| Audio | |
| AMPLIFIER CLASS | Class D |
| CURRENT CONSUMPTION (IDLE) | Monoblock: < 0.89 A @ 14.4 V input 4-Channel: < 1.15 A @ 14.4 V input 6-Channel: < 1.32 A @ 14.4 V input 8-Channel: < 1.60 A @ 14.4 V input Zone: < 0.04 A @ 14.4 V input |
| CURRENT CONSUMPTION (MAX) | Monoblock: 87 A 4-Channel: 53 A 6-Channel: 78 A 8-Channel: 104 A Zone: 10 A |
| CURRENT CONSUMPTION (STANDBY) | Monoblock/4/6/8-Channel: < 5 mA @ 14.4 V input Zone: < 1 mA @ 14.4 V input |
| FREQUENCY RESPONSE (+0, -1DB) | 20 Hz-20 kHz |
| FUSE RATING | Monoblock/6/8-Channel: 125 A electronic fuse (no replacement neccessary) 4-Channel: 85 A electronic fuse (no replacement neccessary) Zone: 16 A electronic fuse (no replacement necessary) |
| IGNITION SAFETY PROTECTED (SAE J1171) | Yes |
| INPUT IMPEDANCE | Monoblock/4/6/8-Channel: 22 kΩ Zone: 9 kΩ |
| INPUT SENSITIVITY @ RCA INPUTS | Monoblock: 2.15 V RMS 4/6/8-Channel: 1.3 V RMS Zone: 0.45 V RMS |
| INPUT VOLTAGE RANGE @ RCA INPUTS | Monoblock: 2.15 V RMS 4/6/8-Channel: 1.3 V RMS Zone: 0.45 V RMS |
| MIN. COPPER POWER/GROUND WIRE GAUGE | Bussmann™ BK/AMI-030 30 A fast-acting |
| PROTECTION CIRCUITS | Reverse voltage Input under/over voltage Over temperature Output short circuit |
| RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 2 OHM < 1% THD) | Monoblock: 1100 W x 1 4-Channel: 290 W x 4 6-Channel: 290 W x 6 8-Channel: 290 W x 8 Zone: 30 W x 2 |
| RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD) | Monoblock: 650 W x 1 4-Channel: 150 W x 4/580 x 2 (Bridged) 6-Channel: 150 W x 6/580 x 3 (Bridged) 8-Channel: 150 W x 8/580 x 4 (Bridged) Zone: 20 W x 2 |
Tags: amplifiers, audio system, marine entertainment,
