2 STROKE - T9.9/15 - Carburetor Assembly - 63V-14301-00 - T15-04060000 - Parsun
- Brand: ASM
- Product Code: T15-04060000
- Availability: In Stock
- $149.55
- Ex Tax: $149.55
Qty

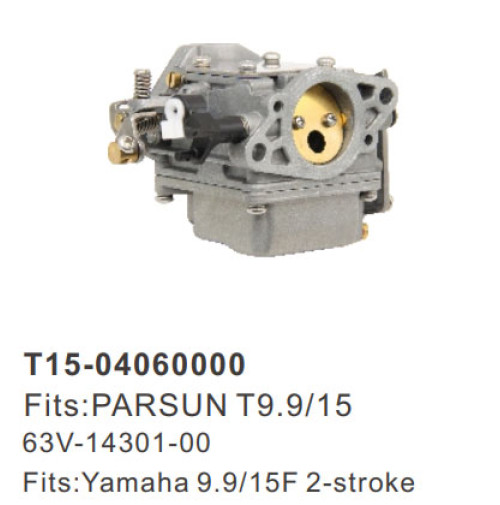

2 STROKE - T9.9/15 - Carburetor Assembly - 63V-14301-00 - T15-04060000 - Parsun
T15-04060000
Fits: PARSUN T9.9/15
63V-14301-00
Fits: Yamaha 9.9/15F 2-stroke

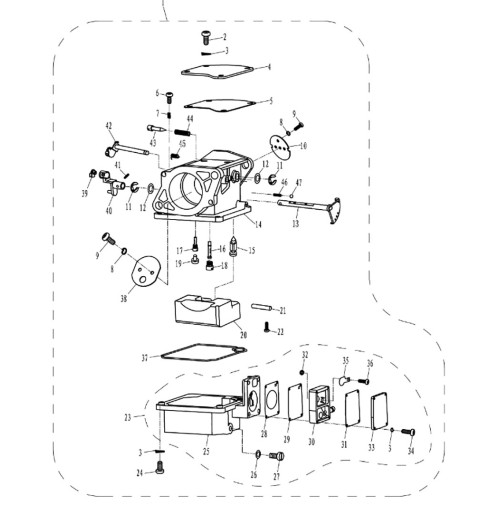

| REF | CODE | PRODUCT NAME | Fits |
| 1 | T15-04060000 | CARBURETOR ASSY | T15-04060000 / Fits: PARSUN T9.9/15 / 63V-14301-00 / Fits: Yamaha 9.9/15F 2-stroke |
| 2 | GB/T818-M4X10 | SCREW, PAN HEAD M4 X 10 | |
| 3 | GB/T94.1-4 | SPRING WASHER 4 | |
| 4 | T15-04060003 | PLATE | |
| 5 | T15-040600021 | GASKET | |
| 6 | T15-04060006 | BOLT | |
| 7 | T15-04060007 | SPRING, THROTTLE | |
| 8 | GB/T94.1-3 | SPRING WASHER 3 | |
| 9 | GB/T818-M3X6 | SCREW M3X6 |
| 10 | T15-04060104 | APRON, THROTTLE | |
| 11 | GB/T896-4 | CIRCLIP 4 | |
| 12 | T15-04060102 | WASHER | |
| 13 | T15-04060201 | SWING LINK, CHOKE | |
| 14 | T15-04060001 | CARBURETOR BODY | |
| 15 | T15-04060008 | NEEDLE VALVE | |
| 16 | T15-04060011 | MAIN NOZZLE | |
| 17 | T15-04060013 | IDLE JET | |
| 18 | T15-04060012 | MAIN JET | |
| 19 | T15-04060014 | RUBBER CAP |
| 20 | T15-04060009 | FLOAT | |
| 21 | T15-04060010 | PIN, FLOAT | |
| 22 | GB/T818-M4X8 | SCREW M4X8 | |
| 23 | T15-04060300 | BODY, FLOAT CHAMBER | |
| 24 | GB/T823-M4X14 | BOLT M4X14 | |
| 25 | T15-04060301 | CUP, FUEL PUMP | |
| 26 | T15-04060017 | GASKET, FUEL DRAIN BOLT | |
| 27 | T15-04060016 | FUEL DRAIN BOLT | |
| 28 | T15-04060302 | UPPER DIAPHRAGM, FUEL PUMP | |
| 29 | T15-04060303 | GASKET, FUEL PUMP |
| 30 | T15-04060304 | FUEL PUMP SHELL | |
| 31 | T15-04060307 | LOWER DIAPHRAGM, FUEL PUMP | |
| 32 | GB/T6170-M3 | NUT M3 | |
| 33 | T15-04060308 | LOWER COVER, FUEL PUMP | |
| 34 | GB/T818-M4X22 | SCREW M4X22 | |
| 35 | T15-04060305 | CHECK VALVE | |
| 36 | T15-04060306 | SCREW M3X5 | |
| 37 | T15-04060015 | GASKET, CARBURETOR | |
| 38 | T15-04060202 | APRON, CHOKE | |
| 39 | T15-04060022 | TIE-IN, THROTTLE CONTROL ROD |
| 40 | T15-04060205 | ROCKER ARM, CHOKE ROD | |
| 41 | GB/T879.2-2X10 | PIN 2X10 | |
| 42 | T15-04060100 | THROTTLE BAR ASSY | |
| 43 | T15-04060004 | SCREW, AIR ADJUSTING | |
| 44 | T15-04060005 | SPRING, AIR ADJUSTING | |
| 45 | T15-04060103 | SWIST SPRING | |
| 46 | T15-04060203 | SWING LINK SPRING | |
| 47 | T15-04060204 | SWING LINK BALL | |
