2 STROKE - T8/9.8 - Carburetor Assembly - 3K9-03200-0 - T8-05000800 - Parsun
- Brand: ASM
- Product Code: T8-05000800
- Availability: In Stock
- $144.14
- Ex Tax: $144.14
Qty

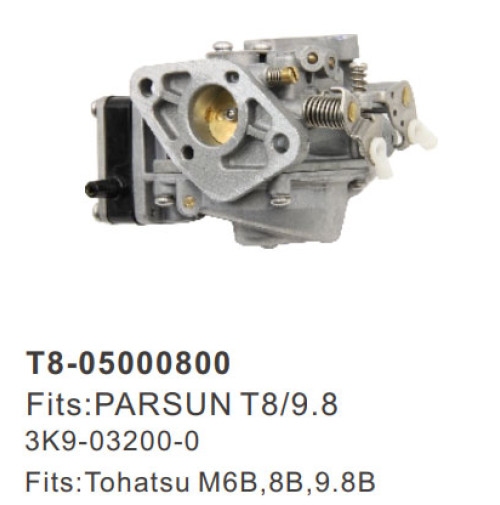

2 STROKE - T8/9.8 - Carburetor Assembly - 3K9-03200-0 - T8-05000800 - Parsun
Fits: PARSUN T8/9.8
3K9-03200-0
Fits: Tohatsu M6B,8B,9.8B

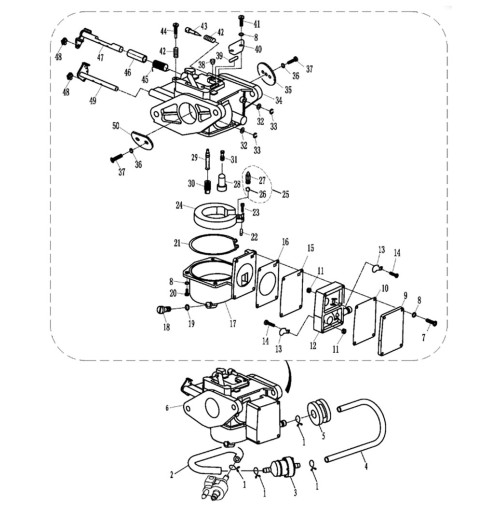

| REF | CODE | PRODUCT NAME | Fits |
| 1 | F4-04000030 | CLIP "B", FUEL PIPE | |
| 2 | T8-03000003 | OIL PIPE B | |
| 3 | F4-05000300 | FUEL FILTER ASSY | |
| 4 | T8-03000002 | OIL PIPE | |
| 5 | T8-03000004 | ABSORBER, OIL PIPE | |
| 6 | T8-05000800 | CARBURETOR ASSY | Fits:PARSUN T8/9.8 / 3K9-03200-0 / Fits:Tohatsu M6B,8B,9.8B |
| 7 | GB/T818-M4X22 | SCREW M4X22 | |
| 8 | GB/T93-4 | SPRING WASHER | |
| 9 | T8-05000834 | COVER, FUEL PUMP |
| 10 | T8-05000833 | GASKET, FUEL PUMP COVER | |
| 11 | GB/T6170-M3 | NUT M3 | |
| 12 | T8-05000830 | FUEL PUMP SHELL | |
| 13 | F4-04090005 | CHECK VALVE UNILATERAL PLATE | |
| 14 | F4-04090011 | SCREW M3X6 | |
| 15 | T8-05000826 | DIAPHRAGM, FUEL PUMP | |
| 16 | T8-05000829 | GASKET, FUEL PUMP | |
| 17 | T8-05000823 | OIL CUP | |
| 18 | T8-05000824 | FUEL DRAIN BOLT | |
| 19 | T8-05000825 | GASKET, FUEL DRAIN BOLT |
| 20 | GB/T818-M4X14 | SCREW M4X14 | |
| 21 | T8-05000822 | GASKET, FUEL PUMP CUP | |
| 22 | T8-05000821 | PIN, FLOAT | |
| 23 | GB/T818-M4X6 | PAN HEAD SCREW M4 X 6 | |
| 24 | T8-05000820 | FLOAT | |
| 25 | T8-05000819 | NEEDLE VALVE ASSY | |
| 26 | T8-05000819-2 | SPRING, NEEDLE VALVE | |
| 27 | T8-05000819-1 | NEEDLE VALVE | |
| 28 | T8-05000808' | RUBBER CAP | |
| 29 | T8-05000807 | MIAN NOZZLE |
| 30 | T8-05000806 | MIAN JET | |
| 31 | T8-05000805 | SLOW JET | |
| 32 | T8-05000815 | WASHER, SWING LINK | |
| 33 | GB/T896-4 | CIRCLIP 4 | |
| 34 | T8-05000801 | CARBURETOR | |
| 35 | T8-05000816 | APRON, ACCELERATOR | |
| 36 | GB/T93-3 | SPRING WASHER 3 | |
| 37 | GB/T818-M3X5 | SCREW M3X5 | |
| 38 | T8-05000810 | PLUG | |
| 39 | T8-05000809 | RUBBER PLATE |
| 40 | T8-05000811 | PLATE | |
| 41 | GB/T818-M4X10 | SCREW, PAN HEAD M4 X 10 | |
| 42 | T8-05000803 | SPRING | |
| 43 | T8-05000804 | IDLE SCREW | |
| 44 | T8-05000802 | STOP SCREW | |
| 45 | T8-05000814 | TWIST SPRING | |
| 46 | T8-05000813 | PIPE, SWING LINK | |
| 47 | T8-05000812 | ACCELERATOR BAR ASSY | |
| 48 | T8-05000022 | TIE-IN | |
| 49 | T8-05000817 | ROD ASSY, AIR STRANGER |
| 50 | T8-05000818 | APRON, AIR STRANGER | |
