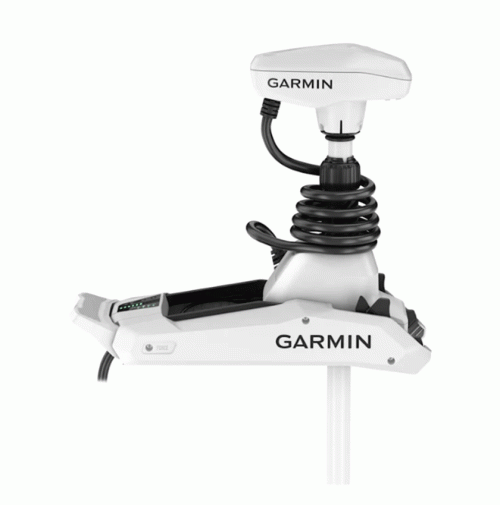

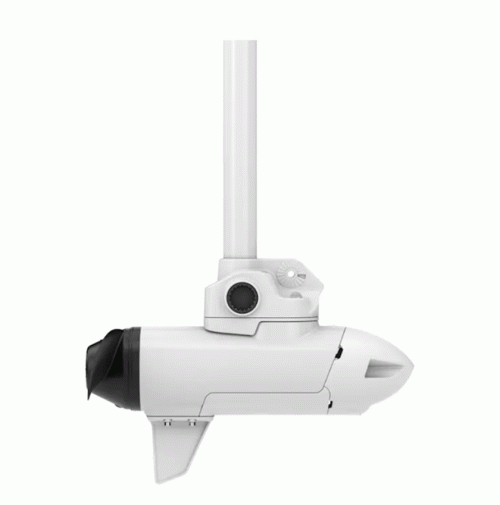

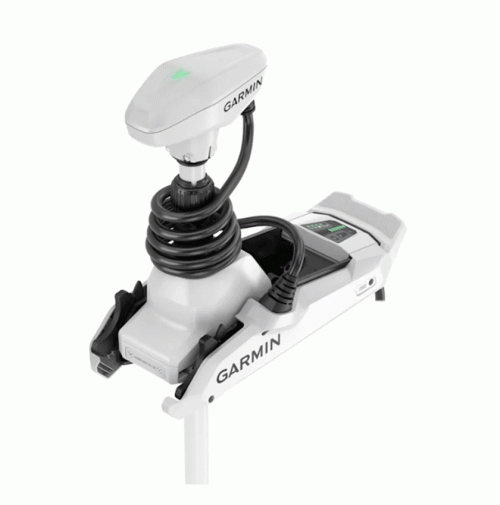

Force Kraken Trolling Motor - 90" with remote control - 010-02574-20 - Garmin

Qty

Force Kraken Trolling Motor - 90" with remote control - 010-02574-20 - Garmin:

IN THE BOX:

Foot pedal features
DIMENSIONS	12″ L x 9″ W x 4 1/2″ H
Remote features
AUTOPILOT FEATURE CONTROL	Yes
BATTERY LIFE	Typical use with backlight at low, 43.2 weeks
CHARTPLOTTER USER-PROGRAMMABLE KEYS	Yes
DISPLAY RESOLUTION	240 x 240 pixels
DISPLAY SIZE	30.2 mm (1.2″) diameter
DISPLAY TYPE	Colour, sunlight-visible, transflective memory-in-pixel (MIP)
FLOATS	Yes
WATER RATING	IPX7
AutoPilot features
ANCHOR LOCK	Yes
ANCHOR LOCK JOG	Yes
CRUISE CONTROL	Yes
GESTURE FEATURES	Yes (manual+, heading hold+, jog+)
HEADING HOLD	Yes
ROUTE FOLLOWING	Yes
SMART ANCHOR LOCK FEATURES	Yes
Security information
SECURITY UPDATES UNTIL AT LEAST (YYYY-MM-DD)	2026-07-09
GENERAL
Battery indicator	Yes
BUILT-IN GPS	Yes (dual frequency GPS)
BUILT-IN HEADING SENSOR	Yes
Color display	White
DIMENSION
Display size
ELECTRIC STEERING	Yes
FOOT PEDAL COMPATIBLE	Yes
FOR USE IN	Freshwater, brackish water and saltwater
LIGHTED DIRECTION INDICATOR	Yes
MANUAL REVERSE CONTROL	Yes
MAX THRUST	100 lbs per ISO 13342 using high efficiency propeller at 36 V 80 lbs per ISO 13342 using high efficiency propeller at 24 V
MOUNT STYLE	Pivot-style mount
MOUNTING LOCATION	Bow
QUATIX REMOTE CONTROL SUPPORTED	Yes
VARIABLE SPEED CONTROL	Yes (20 steps)
VOLTAGE	24 V or 36 V
Warranty	3-year, limited lifetime on shaft
Water rating	IPX7
WIRELESS REMOTE	Yes (included)
Sonar Features & Specifications

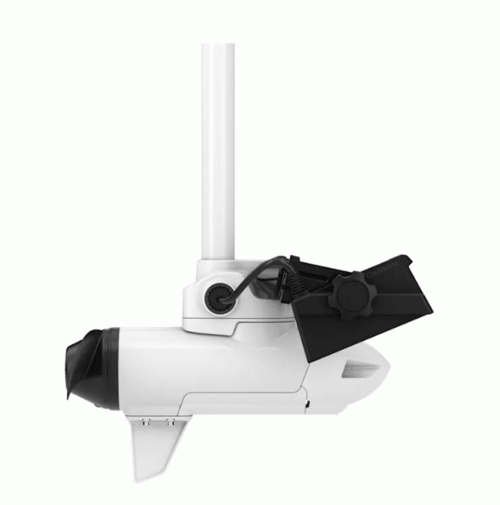

LIVESCOPE	Yes (LiveScope transducer and Kraken Mounting Bracket purchases required)
