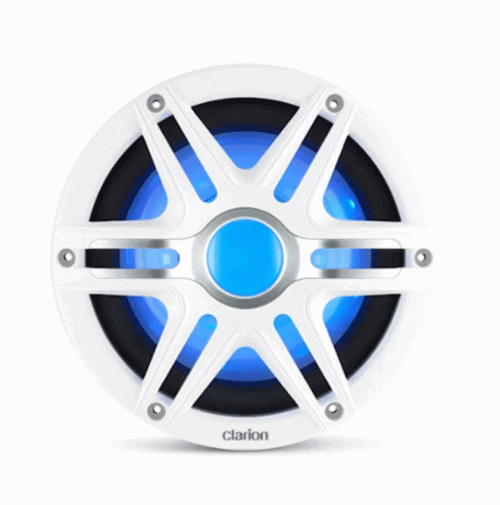

Clarion CMSP - Marine Subwoofer 10" with LED 4 ohm (grilles sold separately) - 101RGB-4 - JLA - 92622 - 010-03050-00 - Garmin
- Brand: Garmin
- Product Code: 010-03050-00
- Availability: In Stock
- $209.91
- Ex Tax: $209.91
Qty
Clarion CMSP - Marine Subwoofer 10" with LED 4 ohm (grilles sold separately) - 101RGB-4 - JLA - 92622 - 010-03050-00 - Garmin:
IN THE BOX:
- One 10" marine subwoofer
- 6" waterproof 4-pin LED harness
- Six 1-3/8" stainless steel screws
- One 0.250" female crimpable connectors
- One 0.185" female crimpable connectors
| Appearance and performance | |
| Weight | 4.85 kg (10.69 lbs) |
| Mounting Dimensions | |
| BOLT HOLE CIRCLE | 247 mm (9.72") |
| Mounting depth clearance | 131 mm (5.16") |
| MOUNTING HOLE | 222 mm (8.75") |
| Parameters | |
| DC RESISTANCE (RE) | 2 Ω: 2.180 Ω 4 Ω: 4.080 Ω |
| EFFECTIVE PISTON AREA (SD) | 2 Ω: 0.0314 m² (48.67 in²) 4 Ω: 0.0314 m² (48.67 in²) |
| ELECTRICAL “Q” (QES) | 2 Ω: 0.832 4 Ω: 1.005 |
| EQUIVALENT COMPLIANCE (VAS) | 2 Ω: 0.87 cu ft (24.77 L) 4 Ω: 0.88 cu ft (24.93 L) |
| MECHANICAL “Q” (QMS) | 2 Ω: 11.410 4 Ω: 11.532 |
| ONE-WAY LINEAR EXCURSION | 2 Ω: 10 mm (0.39") 4 Ω: 10 mm (0.39") |
| TOTAL “Q” (QTS) | 2 Ω: 0.775 4 Ω: 0.925 |
| Thiele Small Parameters | |
| Free Air Resonance (Fs) | 2 Ω: 44.81 Hz 4 Ω: 47.15 Hz |
| GENERAL | |
| COLOUR | Black |
| Cone material | Injection-molded, polypropylene |
| CONTINUOUS POWER HANDLING (RMS) | 250 W |
| LED lighting | Yes, RGB |
| LED load current @14.4 VDC (max) | 220 mA |
| LED supply voltage | 10-14.4 VDC |
| Nominal impedance | 4 Ω |
| PHYSICAL DIMENSIONS (DEPTH) | 131mm (5.16") |
| PHYSICAL DIMENSIONS (DIAMETER) | 269 mm (10.57") (without grille) |
| Recommended amplifier power (watts RMS) | 250 W |
| Sensitivity (1 watt @ 1 metre) | 86 dB |
| SIZES | 10" |
| SPEAKER TYPE | Infinite Baffle Subwoofer |
