Clarion - marine compact source unit With LCD Display (CMM-10i) - 010-03218-00 - Garmin

Qty

Clarion - marine compact source unit With LCD Display (CMM-10i) - 010-03218-00 - Garmin:

IN THE BOX:

Networking
BLUETOOTH® WIRELESS RANGE	Up to 11 metres (35 ft)
Fusion Electronics
DAB+ Ready	See Additional
Sources
SUPPORTED AUDIO FORMATS (USB)	MP3, WMA, FLAC, WAV
SUPPORTED SOURCES	Digital AM/FM with RDS/NOAA Weather Radio (US only)/DAB+ (CMM-10i: Europe only)/BLUETOOTH®/USB audio/iPhone/iPod
Stereo features
BLUETOOTH® WIRELESS TECHNOLOGY	Yes
Built-in amplifier	Class AB (4 Ω)
DISPLAY TYPE	Monochrome, segmented, TFT LCD backlit
Multi-language interface	English
Multi-Zone™ technology	Yes
OPTICALLY BONDED DISPLAY	Yes
GENERAL

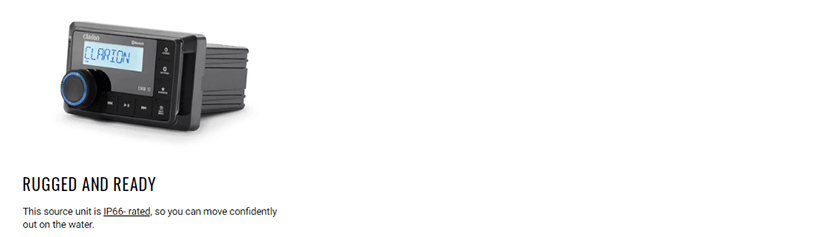

CONTROL SURFACE DUST/WATER RATING (WHEN PROPERLY INSTALLED)	IP66
CURRENT DRAW (MAX)	15 A
Display size	CMM-10: 53 mm (2.09") CMM-10GR: 53mm (2.09")
Operating temperature range	-20° C to +60° C (-4° F to +140° F)
PHYSICAL DIMENSIONS (DEPTH)	80 mm (3.15")
PHYSICAL DIMENSIONS (HEIGHT)	CMM-10: 63 mm (2.48") CMM-10GR: 102 mm (4.03")
PHYSICAL DIMENSIONS (WIDTH)	CMM-10: 110 mm (4.33") CMM-10GR: 102 mm (4.03")
Warranty	1 year
Wireless frequencies/protocols	BLUETOOTH®
Audio
RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD)	20 W x 4
Connections
ANTENNA PORTS	1
speaker connections	4 (2 zones amplified)
USB 2.0 PORTS	1 USB storage device (1 A charging output)
Connections
RCA PRE-OUT	2 zones (L+R) or Zone 2 as subwoofer
Electrical
Power input	10-16 VDC
Connectivity
Line out	2 (L + R per zone)
Subwoofer out	Occupies Zone 2
Additional
Additional	DAB+ Ready: CMM-10i: yes
