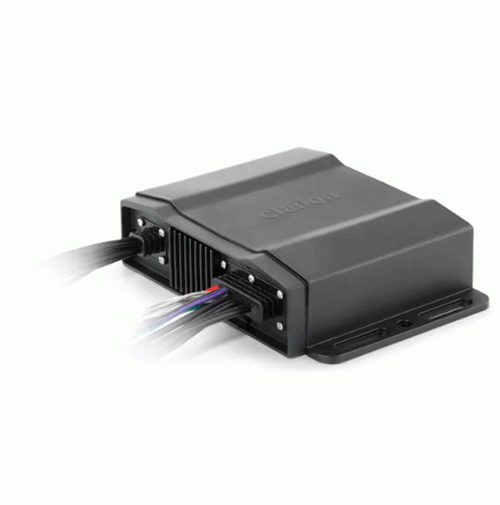

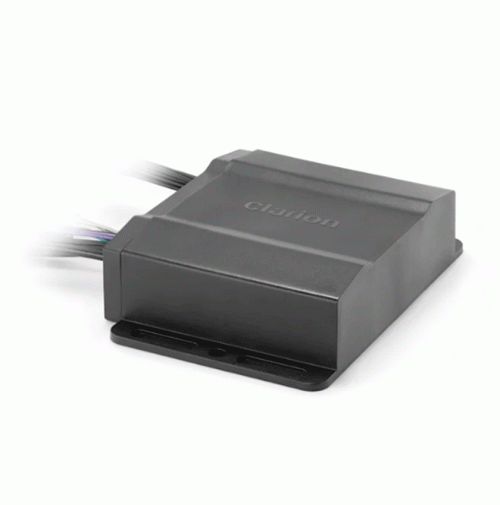

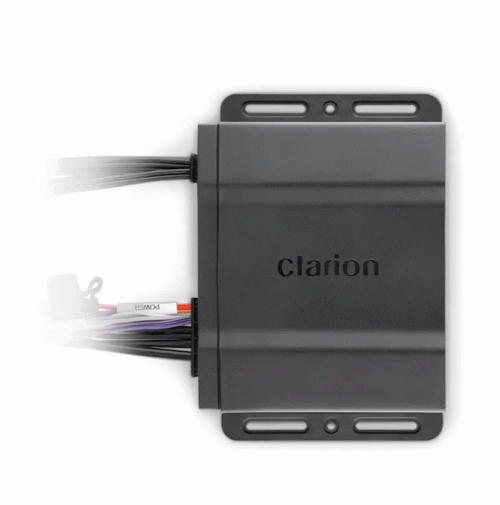

Clarion - marine soure unit Hideaway (CMM-30BB) - 010-03225-00 - Garmin
- Brand: Garmin
- Product Code: 010-03225-00
- Availability: In Stock
- $480.18
- Ex Tax: $480.18
Qty
Clarion - marine soure unit Hideaway (CMM-30BB) - 010-03225-00 - Garmin:
IN THE BOX:
- One marine source unit with trim ring (attached)
- Power and speaker connections wire harness
- One mounting gasket (not included with Hideaway Receiver)
- One mounting template
- Four mounting screws
- Protective sun cover (not included with Hideaway Receiver)
| Networking | |
| BLUETOOTH® WIRELESS RANGE | Up to 11 metres (35 ft) |
| Sources | |
| SUPPORTED AUDIO FORMATS (USB) | MP3, WMA, FLAC, WAV |
| SUPPORTED SOURCES | Digital AM/FM with RDS/NOAA Weather Radio (US only)/BLUETOOTH®/USB audio/iPhone/iPod/AUX/SiriusXM-Ready (USA & CA only, requires subscription and SiriusXM Connect vehicle tuner) |
| Stereo features | |
| BLUETOOTH® WIRELESS TECHNOLOGY | Yes |
| Built-in amplifier | Class-D (2 Ω stereo-stable) |
| DISPLAY TYPE | CMM-30: colour TFT LCD backlit |
| Multi-language interface | English |
| Multi-Zone™ technology | Yes |
| OPTICALLY BONDED DISPLAY | Yes (CMM-30) |
| SiriusXM-ready | Yes |
| Software updates | Yes |
| GENERAL | |
| CONTROL SURFACE DUST/WATER RATING (WHEN PROPERLY INSTALLED) | IP66 |
| CURRENT DRAW (MAX) | 15 A |
| Display resolution | CMM-30: 640 x 360 |
| Display size | CMM-30: 76 mm (3") |
| Operating temperature range | -20° C to +60° C (-4° F to +140° F) |
| PHYSICAL DIMENSIONS (DEPTH) | CMM-30: 75 mm (2.95") CMM-30BB: 138 mm (2.01") |
| PHYSICAL DIMENSIONS (HEIGHT) | CMM-30: 3.90" (99 mm) CMM-30BB: 7.90" (201 mm) |
| PHYSICAL DIMENSIONS (WIDTH) | CMM-30: 151 mm (5.94") CMM-30BB: 138 mm (5.42") |
| Warranty | 1 year |
| Wireless frequencies/protocols | BLUETOOTH® |
| Audio | |
| RATED CONTINUOUS (RMS) POWER (14.4 V INPUT @ 4 OHM < 1% THD) | 25 W x 4 |
| Connections | |
| ANTENNA PORTS | 1 |
| NMEA 2000® PORTS | 1 (Micro-C connector) |
| siriusxm ports | 1 |
| speaker connections | 4 (2 zones amplified) |
| USB 2.0 PORTS | 1 High-speed connection for use with iPhone®/iPod® (MFi Certified) or USB storage device (2.1 A charging output) |
| Connections | |
| RCA PRE-OUT | 4 zones (L+R) or Zone 4 as subwoofer |
| Electrical | |
| NMEA 2000® LEN | 1 (50 mA) |
| Power input | 10-16 VDC |
| Connectivity | |
| Auxiliary input | 1 (2V or 1V RMS input sensitivity) |
| Line out | 4 (L + R per zone) |
| Subwoofer out | Occupies Zone 4 |
Tags: Stereo, Audio Systems, Marine entertainment, Bluetooth, NMEA, remote
