Transom Assembly For Bravo Bell Housing
- Brand: Mercruiser
- Product Code: Transom Assembly For Bravo Bell Housing
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

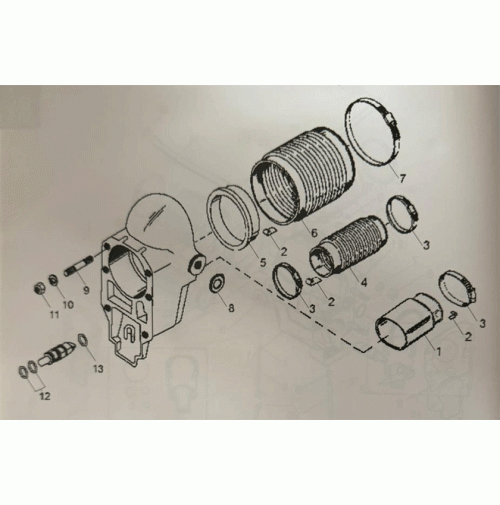

Transom Assembly For Bravo Bell Housing
| Reference # | Description | SEI# | OE# |
| 1 | Exhaust Tube | 9A-108-04TK | 78458A1 |
| 2 | Clip (Not Available Separetly) | N/A | N/A |
| 3 | Exhaust Bellow Clamp | 9A-108-08 | 815504348 |
| 4 | Exhaust Bellows | 9A-108-03K | 18654A1 |
| 5 | Sleeve | 9A-121-12 | 862209 |
| 6 | U-Joint Bellow | 9A-121-02K | 86840A3 |
| 7 | U-Joint Bellow Clamp | 9A-108-07 | 0815504372 |
| 8 | Washer | 9D-121-25 | 12-806241 |
| 9 | Stud (.437-14/.437-14 X 2.812) | 9D-116-26 | 16-59579 |
| 10 | Washer | 98-116-74 | 12-35935 |
| 11 | Locknut 7/16-20 | 98-102-12 | 11-859116 |
| 12 | O-Ring | 95-121-05B | 25-62705 |
| 13 | O-Ring | 9D-116-32 | 25-48171 |
