Transom Assembly For Gimbal Housing-MC-1, MR, Alpha I, Alpha I Gen II
- Brand: Mercruiser
- Product Code: Gimbal Housing-MC-1, MR, Alpha I, Alpha I Gen II
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

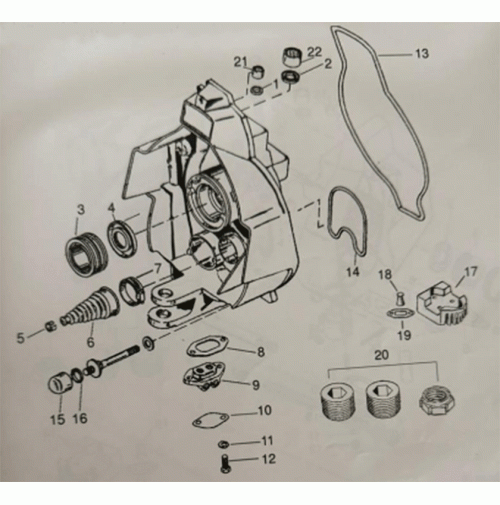

Transom Assembly For Gimbal Housing-MC-1, MR, Alpha I, Alpha I Gen II
| Reference # | Description | SEI# | OE# |
| 1 | Oil Seal (Small) | 9F-116-05A | 26-54925 |
| 2 | Oil Seal (Large) | 9F-116-05B | 26-32911 |
| 3 | Gimball Bearing | 9A-108-01 | 60794A4 |
| 3 | Gimball Bearing | 9A-121-01 | 30-862540A3 |
| 4 | Oil Seal | 9F-116-26 | 26-88416 |
| 5 | Clamp | 9A-108-11C | 54-38863 |
| 6 | Shift Cable Bellows | 9A-108-04K | 74639A2 |
| 7 | Shift Cable Bellow Clamp | 9A-108-10 | 54-815504320 |
| 8 | Gasket | 9F-116-18 | 27-98823 1 |
| 9 | Connector | 9F-116-17 | 98825A4 |
| 10 | Gasket | 9F-116-22 | 27-99506 1 |
| 11 | 1/4 Internal Lockwasher S/S | 98-116-73 | 13-78968 |
| 12 | Screw, 1/4-20 x .75 | 98-102-13 | 10-28636 |
| 13 | Transom Seal (MC-1/R/Mr/Alpha I) | 9F-116-09 | 65533A1 |
| 13 | Transom Seal (Alpha I Gen II) | 9F-116-09 | 43713 |
| 14 | Seal, Exhaust Pipe | 9F-116-07 | 41802 |
| 15 | Anode, Transom Bolt, Zinc | 9F-116-03 | 55989 |
| 15 | Anode, Transom Bolt, AI | 9F-116-03A | 55989 |
| 16 | Seal | 9F-116-03G | 12-56085 |
| 17 | Anode, Lower Transom, Zinc | 9F-116-20 | 821631 |
| 17 | Anode, Lower Transom, AI | 9F-116-20A | 821631 |
| 18 | Seal | 9F-116-21 | 12077 |
| 19 | Gasket | 9F-116-22 | 27-99506 1 |
| 20 | Plug Kit | 9F-116-25 | 22-88847A1 |
| 21 | Bushing - Upper | 9F-121-06 | |
| 22 | Bushing - Lower | 9F-121-04 |
