Hydraulics For Trim Cylinders & Components: Bravo I, II and III
- Brand: Mercruiser
- Product Code: Trim Cylinders & Components: Bravo I, II and III
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

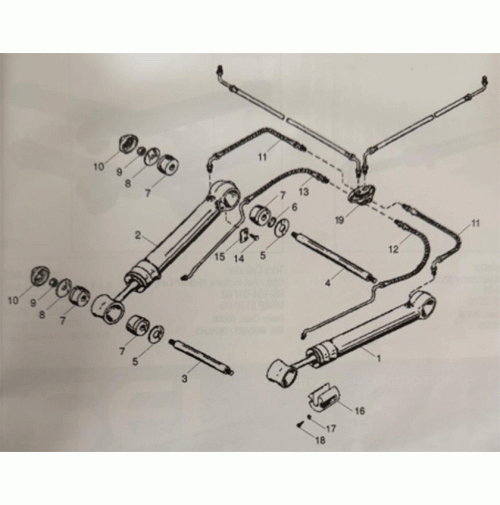

Hydraulics For Trim Cylinders & Components: Bravo I, II and III
| Reference # | Description | SEI# | OE# |
| 1 | Trim Cylinder, Stbd. (For All Bravo) | 9B-121-01 | 98704A26 |
| 2 | Trim Cylinder, Port (For All Bravo) | 9B-121-02 | 98703A26 |
| 3 | Pin, Rear | 9B-121-14 | 17-44166 |
| 4 | Pin, Front | 9B-121-20 | 17-44167 |
| 5 | Washer | 9B-121-17 | 12-44164 |
| 6 | Retaining Ring | 9B-121-23 | 53-805272 |
| 7 | Bushing | 9B-121-13 | 23-807073 |
| 8 | Washer (7/16 I.D.) | 9B-104-17 | 44163 |
| 9 | Locknut | 98-102-12 | 11-859116 |
| 10 | Cap | 9B-104-21 | 14842 |
| 11 | Hose (For Alpha I, Gen II & Bravo Cylinders) | 9B-104-10 | 99904 |
| 12 | Starboard Hose (For Alpha I 16-3/16" & Gen II) | 9B-106-12 | 99902 |
| 13 | Port Hose (For Alpha I 16-3/16" & Gen II) | 9B-106-11 | 99903 |
| 14 | Screw | 9B-104-15 | 85486 |
| 15 | Plate | 9B-104-16 | 85060 |
| 16 | Anode Kit, Trim, Bravo, Zinc | 9B-122-22K | N/A |
| 17 | #10 Lock Washer S/S | 98-102-53 | 13-69432 |
| 18 | 10/32 X 5/8 Hex Mach S/S | 98-102-52 | 10-806290 |
| 19 | Connector | 9F-116-17 | 98825A4 |
| Not Shown | Housing (For Bravo Stbd.) | 9B-121-01S | 98704T |
| Not Shown | Housing (For Bravo Port) | 9B-121-02S | 98703T |
| Not Shown | End Cap (For Alpha I, Gen II and Bravo) | 9B-104-13A | 806191T |
| Not Shown | Overhaul Kit (For Alpha I and Bravo) | 9B-104-31 | 87399A2 |
| Not Shown | Seal Kit (For Alpha I, Gen II and Bravo Cylinders) | 9B-104-30 | 25-87400A2 |
| Not Shown | House & Hardware Kit (For Bravo) | 9B-122 | N/A |
| Not Shown | Hose Kit (For Alpha I 15-9/16 & Bravo) | 9B-104A | N/A |
| Not Shown | Hardware Kit (For Bravo) | 9B-122B | N/A |
