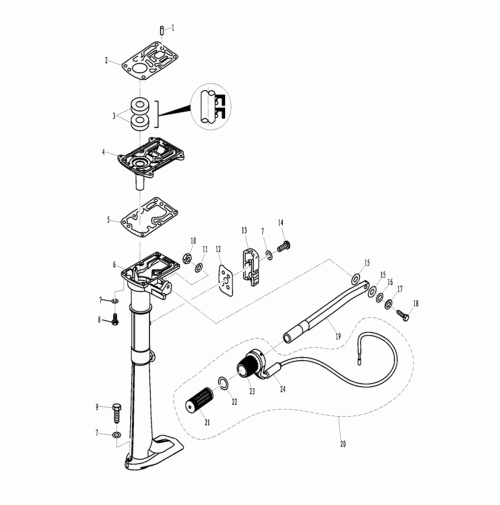

UPPER CASING 2 Strock For T2C T2.6C
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T2-00000003 | PIN 5x16 | 0.00 |
| 2 | T2-00000004 | GASKET, ENGINE | 0.00 |
| 3 | F2.6-04060002 | OIL SEAL K-5657 | 93102-09004 |
| 4 | T2-00000101C | EXHAUST SEAT | 0.00 |
| 5 | T2-00000005 | GASKET, EXHAUST SEAT | 0.00 |
| 6 | T2-02000001 | UPPER CASING | 0.00 |
| 7 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 8 | GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00 |
| 9 | GB/T9074.14-M6X30 | BOLT M6x30 | 0.00 |
| 10 | GB/T889.1-M8 | LOCK NUT M8 | 0.00 |
| 11 | GB/T86.1-8 | LOCKING WASHING 8 | 0.00 |
| 12 | T2-02000004 | GASKET, EXHAUST COVER | 0.00 |
| 13 | T2-02000003 | COVER, EXHAUST | 0.00 |
| 14 | GB/T823-M6x16 | SCREW M6x16 | 0.00 |
| 15 | T2-01000007 | WASHER, THRUST | 0.00 |
| 16 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 17 | GB/T93-8 | WASHER, SPRING 8 | 92995-08100 |
| 18 | GB/T5783-M8X35 | BOLT M8x35 | 97075-08035 |
| 19 | T2-01000301C | TILLER HANDLE | 0.00 |
| 20 | T2-01000600B | TILLER HANDLE ASSY | 0.00 |
| 21 | T2-01000503B | RUBBER JACKET, HANDLE BAR | 0.00 |
| 22 | T2-01000502B | NYLON WASHER, HANDLE BAR | 0.00 |
| 23 | T2-01000500B | HANDLE BAR BASE ASSY | 0.00 |
| 24 | T2-04000401A | RUBBER BUSH, CARBURETOR | 0.00 |
