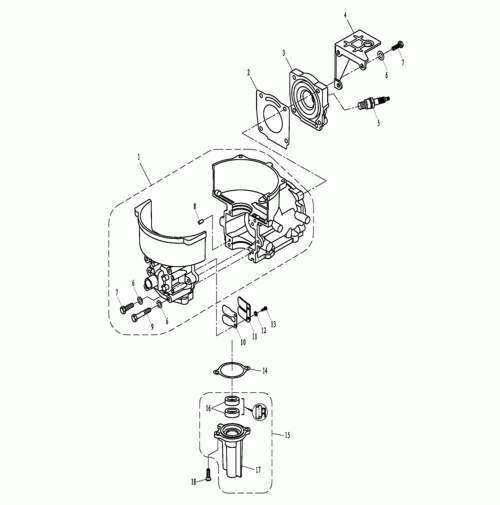

CYLINDER & CRANKCASE 2 Strocks For TC3.6
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T3.6-04010000 | CRANKCASE ASSY | 0.00 |
| 2 | T3.6-04000001 | GASKET, CYLINDER HEAD | 0.00 |
| 3 | T3.6-04000002 | CYLINDER COVER | 0.00 |
| 4 | T3.6-04000003 | FIXED PLATE, FUEL TANK | 0.00 |
| 5 | E7RTC | SPARK PLUG E7RTC | 0.00 |
| 6 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 7 | T3.6-04000017 | BOLT M6x30 | 0.00 |
| 8 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 9 | T3.6-04000018 | BOLT M6x65 | 0.00 |
| 10 | T3.6-04010202 | PLATE, INTAKE VALVE | 0.00 |
| 11 | T3.6-04010203 | LIMITATIVE PLATE, VALVE | 0.00 |
| 12 | GB/T93-4 | WASHER,SPRING 4 | 0.00 |
| 13 | GB/T818-M4X12 | SCREW M4x12 | 0.00 |
| 14 | T3.6-04000004 | GASKET, OIL SEAL CASING | 0.00 |
| 15 | TC3.6-04030000 | OIL SEAL CASING ASSY | 0.00 |
| 16 | T2-03000018 | OIL SEAL 9.8x21x8 | 0.00 |
| 17 | T3.6-04030001 | CASING, OIL SEAL | 0.00 |
| 18 | GB/T819.1-M6X14 | SCREW M6x14 | 0.00 |
