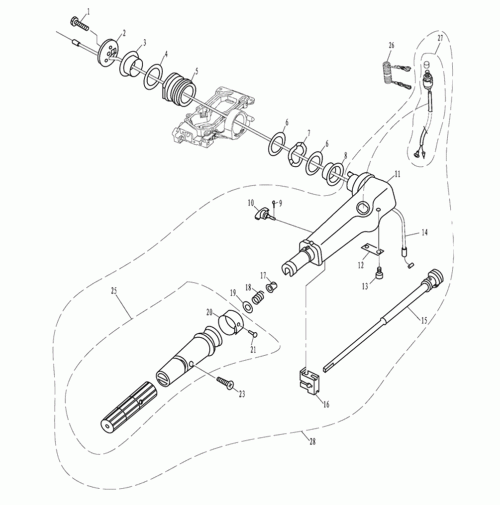

STEERING 2 Strocks For T3.6
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | GB/T9074.14-M8X25 | BOLT M8x25 | 90119-08m51 |
| 2 | F4-01000014 | COVER, TILLER HANDLE | 68D-G2131-01 |
| 3 | F4-01000008 | BUSH B, HANDLE | 68D-G2172-00 |
| 4 | F4-01000011 | WAVE WAHSER A | 68D-G2182-00 |
| 5 | F4-05000014 | DAMPER ASSY, TILLER HANDLE | 67D-42129-00 |
| 6 | F4-01000010 | WAVE WAHSER B | 68D-G2181-00 |
| 7 | F4-01000012 | WAVE WASHER | 69M-G2188-00 |
| 8 | F4-01000009 | BUSH A, HANDLE | 68D-G2171-00 |
| 9 | GB/T91-1.6x12 | COTTER PIN 1.6x12 | 0.00 |
| 10 | F4-01090200 | KNOB ASSY, FRICTION ADJUSTING | 6G1-42125-01 |
| 11 | F4-01090001 | TILLER HANDLE | 0.00 |
| 12 | F4-01090002 | FIXED PLATED, THROTTLE | 68D-G2159-00 |
| 13 | GB/T818-M5x12 | SCREW M5x12 | 97885-05012 |
| 14 | T3.6-04000600 | THROTTLE CABLE ASSY | 0.00 |
| 15 | F4-01090100 | THROTTLE LEVER ASSY | 6G1-42138-01 |
| 16 | F4-01090003 | FRICTION, TILLER HANDLE | 6G1-42126-00 |
| 17 | F4-01090006 | BUSH | 90386-08032 |
| 18 | F4-01090007 | SPRING | 90501-23215 |
| 19 | GB/T848-10 | WASHER 10 | 90201-10M02 |
| 20 | T3.6-02010001 | INDICATOR, THROTTLE | 0.00 |
| 21 | GB/T827-2x5 | RIVET 2x5 | 0.00 |
| 23 | GB/T820-M5x25 | SCREW M5x25 | 90152-05011 |
| 25 | T3.6-02010100 | GRIP ASSY, TILLER HANDLE | 0.00 |
| 26 | F4-01090401 | STOPER, HANG ROPE ASSY | 682-82556-00 |
| 27 | F2.6-02010200 | ENGINE STOP SWITCH ASSY | 65W82575-01 |
| 28 | T3.6-02040000 | TILLER HANDLE ASSY | 0.00 |
