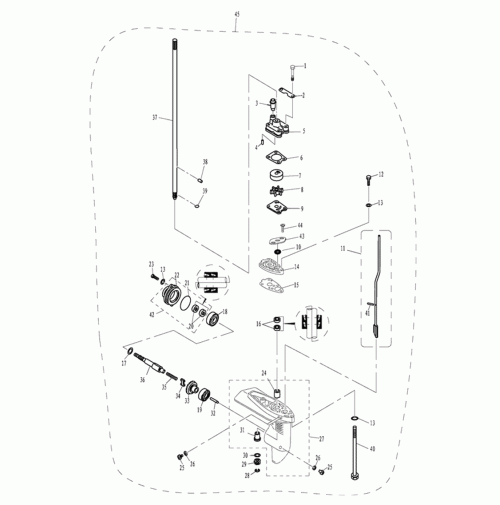

LOWER DRIVE ASSY 2 Strocks For T3.6
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | GB/T5782-M6x45
| BOLT M6x45
| 0.00
|
| 2 | F4-03000020
| FIXED PLATE, WATER PUMP
| 68D-G4328-00
|
| 3 | F4-03000021
| RUBBER TUBE, WATER PUMP
| 67D-44366-00
|
| 4 | F4-03000013
| PIN 4x18
| 93604-18080
|
| 5 | F4-03000019
| HOUSING, WATER PUMP
| 68D-G4311-01
|
| 6 | F4-03000018
| GASKET, WATER PUMP COVER
| 68D-G4315-A0
|
| 7 | F4-03000017
| INSERT COVER, WATER PUMP
| 6E0-44322-02
|
| 8 | F4-03060000
| IMPELLER ASSY
| 6E0-44352-00
|
| 9 | F4-03000015
| OUTER PLATE
| 6E0-44323-00
|
| 10 | F2.6-03000009
| O-RING 4.9X3.5
| 6L2-44147-00
|
| 11 | T3.6-03010000L
| SHIFT CAM SHAFT ASSY L
| 0.00
|
| T3.6-03010000S
| SHIFT CAM SHAFT ASSY S
| 0.00
|
12
| GB/T9074.14-M6X25
| BOLT M6x25
| 97095-06025-00 |
13
| GB/T97.1-5
| WASHER 5
| 6Y1-24329-00
|
14
| F4-03000012 | BASE, WATER PUMP
| 68D-G5321-00
|
15
| F4-03000011
| GASKET, WATER PUMP BASE
| 68D-G5315-A0
|
16
| F4-04060004
| OIL SEAL 10.8x21x7
| 93102-10004
|
| 17 | E4-03000003
| SPACER, PROPELLER SHAFT
| 0.00
|
| 18 | GB/T276-6302
| BEARING 6302
| 0.00
|
| 19 | GB/T276-6004
| BEARING 6004C2
| 0.00
|
| 20 | F4-03050002
| OIL SEAL 13x22x7
| 93306-004YH
|
| 21 | JISB-2401-P48
| O-RING 47.1x3.5
| 0.00
|
| 22 | F4-03050001
| COVER, LOWER CASING
| 93210-48214
|
| 23 | GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
| 24 | F4-03000003
| BARREL BEARING
| 0.00
|
| 25 | F4-03000023
| SCREW PLUG
| 90340-08002
|
| 26 | F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
| 27 | F4-03000001
| LOWER CASING
| 0.00
|
| 28 | GB/T896-6
| CIRCLIP 6
| 0.00
|
| 29 | F4-030000+C20107
| PINION
| 99001-06600
|
| 30 | F4-03000006
| WASHER, PINION
| 6E0-45551-00
|
| 31 | F4-03000002
| BARREL BEARING WITH FLANGE
| 0.00
|
| 32 | F4-03000008
| PLUNGER, SHIFT ROD
| 90201-11M49
|
| 33 | F4-03010000
| FORWARD GEAR ASSY
| 6E0-45317-09
|
| 34 | F4-03030002
| SPACER, CLUTCH
| 67D-45631-01
|
| 35 | F4-03030003
| RING, CLUTCH
| 67D-45560-00
|
| 36 | T3.6-03020001
| SHAFT, PROPELLER
| 0.00
|
| 37 | T3.6-03000001L-A
| DRIVE SHAFT L
| 0.00
|
| T3.6-03000001S-A
| DRIVE SHAFT S
| 0.00
|
| 38 | F4-03000016
| PIN, IMPELLER
| 0.00
|
| 39 | F4-03000005
| CIRCLIP
| 0.00
|
| 40 | GB/T5782-M6x170
| BOLT M6x170 L
| 0.00
|
| GB/T5782-M6x40
| BOLT M6x40
| 0.00
|
| 41 | GB/T879.4-1.5x20
| PIN 1.5x20
| 90467-08M01
|
| 42 | F4-03050000
| COVER ASSY, LOWER CASING
| 0.00
|
| 43 | F4-03000028
| PLATE, O-RING
| 0.00
|
| 44 | GB/T818-M5X8
| SCREW M5x8
| 0.00
|
| 45 | T3.6-03000000L
| LOWER CASING ASSY L
| 0.00
|
| T3.6-03000000S
| LOWER CASING ASSY S
| 0.00
|
