CYLINDER & CRANKCASE 2 Strocks For T3.6
- Brand: Yamaha
- Product Code: CYLINDER & CRANKCASE 2 Strocks For T3.6
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

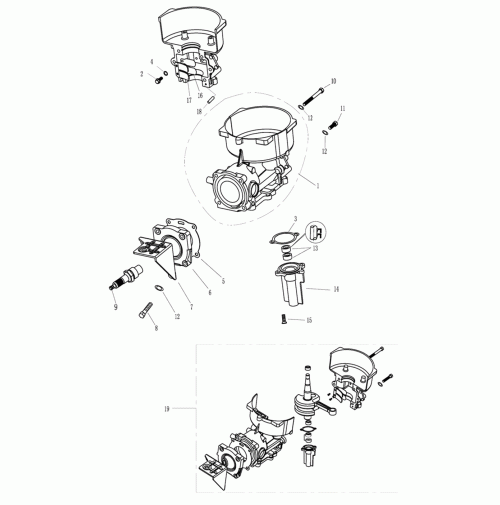

CYLINDER & CRANKCASE 2 Strocks For T3.6
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T3.6-04010000 | CRANKCASE ASSY | 0.00 |
| 2 | GB/T818-M4x12 | SCREW M4x12 | 0.00 |
| 3 | T3.6-04000004 | GASKET, OIL SEAL CASING | 0.00 |
| 4 | GB/T97.1-4 | WASHER 4 | 0.00 |
| 5 | T3.6-04000001 | GASKET, CYLINDER HEAD | 0.00 |
| 6 | T3.6-04000002 | CYLINDER COVER | 0.00 |
| 7 | T3.6-04000003 | FIXED PLATE, FUEL TANK | 0.00 |
| 8 | GB/T9074.14-M6X30 | BOLT M6x30 | 0.00 |
| 9 | E7RTC | SPARK PLUG E7RTC | 0.00 |
| 10 | GB/T5782-M6x65 | BOLT M6x65 | 0.00 |
| 11 | GB/T9074.14-M6X30 | BOLT M6x30 | 0.00 |
| 12 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 13 | F4-04060004 | OIL SEAL 10.8x21x7 | 93102-10004 |
| 14 | T3.6-04030001 | CASING, OIL SEAL | 0.00 |
| 15 | GB/T819.1-M6x14 | SCREW M6x14 | 0.00 |
| 16 | T3.6-04010202 | PLATE, INTAKE VALVE | 0.00 |
| 17 | T3.6-04010203 | LIMITATIVE PLATE, VALVE | 0.00 |
| 18 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 19 | T3.6-04060000 | ENGINE ASSY | 0.00 |
