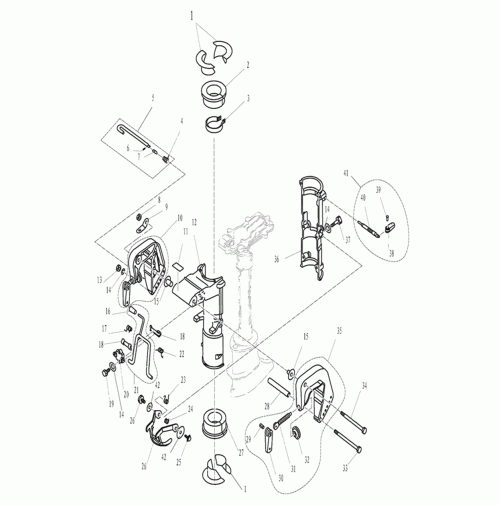

Bracket 2 Strock For TC5
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | F4-02000008 | BUSH, DAMPER | 68D-G2539-00 |
| 2 | F4-02000007 | UPPER ABSORBER | 68D-G2537-00 |
| 3 | F4-02020000 | LOCKING RING ASSY | 6E0-42528-03 |
| 4 | F4-01050002 | CONICAL SPRING | 90502-08M05 |
| 5 | F4-01050000 | LIMITATIVE ROD, TILT LOCK | 68D-G3160-00 |
| 6 | GB/T879-3x8 | PIN 3x8 | 91690-30008 |
| 7 | F4-01050003 | BRACKET, ANTI-OFF | 689-43165-00 |
| 8 | GB/T889.1-M8 | LOCK NUT M8 | 0.00 |
| 9 | F4-01000002 | PLATE, TWO HOLE | 68D-G3113-00 |
| 10 | F4-01020000 | LEFT CLAMP BRACKET ASSY | 6L8-G3112-00-4D |
| 11 | F4-08000018 | MARK 18 | 0.00 |
| 12 | F4-01030001 | BASE, ROTARY BRACKET | 0.00 |
| 13 | GB/T6170-M6 | NUT M6 | 95303-06600 |
| 14 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 15 | F4-01000003 | WASHER, NYLON | 0.00 |
| 16 | F4-01030103 | JACKET, HANDLE | 6E0-43632-00 |
| 17 | F4-01030003 | LEFT SPRING, BRACKET | 90508-16020 |
| 18 | F4-01030002 | BUSH, NYLON | 620-43189-00 |
| 19 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 20 | F4-01030005 | COVER, SUPPORT | 6E0-43313-00-4D |
| 21 | F4-01030100 | BRACKET, TILT LOCK | 6E0-43181-00 |
| 22 | F4-01030004 | RIGHT SPRING, BRACKET | 90508-16021 |
| 23 | F4-01000006 | TWIST SPRING LEFT | 90508-14M10 |
| 24 | F4-01000007 | TWIST SPRING RIGHT | 90508-14M11 |
| 25 | GB/T5783-M6X12 | BOLT M6x12 | 90119-06M73 |
| 26 | F4-01070000 | TILT LOCKED HOOK ASSY | 6E0-43614-00-5B |
| 27 | F4-02000009 | DAMPER RING, LOWER | 68D-G2538-00 |
| 28 | F4-01000004 | BUSH, BOLT | 90387-06M11 |
| 29 | F4-01010005 | RIVET, CLAMP HANDLE | 90243-04M01 |
| 30 | F4-01010004 | HANDLE, CLAMP | 69M-G3118-00 |
| 31 | F4-01010002 | SCREW, CLAMP | 6E0-43116-01 |
| 32 | F4-01010003 | CLAMP PLATE | 6F5-43114-00 |
| 33 | GB/T5782-M6x125 | BOLT M6x125 | 0.00 |
| 34 | GB/T5782-M8x135 | BOLT M8x135 | 0.00 |
| 35 | F4-01010000 | RIGHT CLAMP BRACKET ASSY | 6L8-G3111-01-4D |
| 36 | F4-01000005 | COVER, ROTARY BRACKET | 0.00 |
| 37 | GB/T9074.14-M6X35 | BOLT M6x35 | 0.00 |
| 38 | F4-01060002 | CLAMP HANDLE | 68D-G2561-01 |
| 39 | GB/T875-4x11 | RIVET 4x11 | 90266-04M05 |
| 40 | F4-01060001 | LOCKED BOLT | 6L5-42529-01 |
| 41 | F4-01060000 | LOCKED HANDLE ASSY | 0.00 |
| 42 | GB/T96-6 | BIG WASHER 6 | 0.00 |
