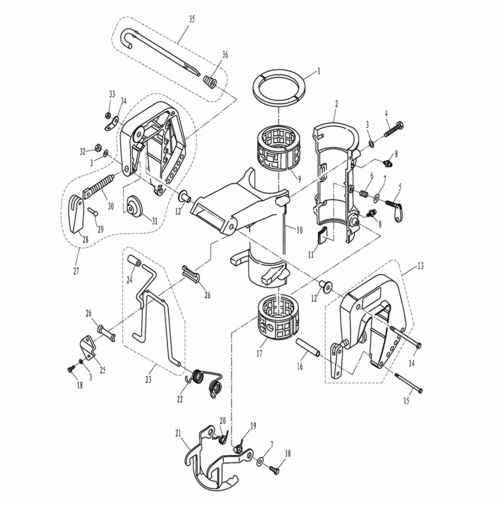

Bracket 2 Strock For T5 T5.8
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | T5-01010003
| BUSH, NYLON
| 0.00
|
| 2 | T5-01010201
| COVER, ROTARY BRACKET
| 0.00
|
| 3 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 4 | GB/T9074.14-M6X35
| BOLT M6x35
| 0.00
|
| 5 | F2.6-01050100
| LOCKED HANDLE ASSY
| 0.00
|
| 6 | F2.6-01050002
| SPRING
| 90501-12803
|
| 7 | GB/T96-6
| BIG WASHER 6
| 0.00
|
| 8 | JB/T9740.1-M6
| NIPPLE, GREASE M6
| 93700-06M03
|
| 9 | T5-01010004
| UPPER ABSORBER
| 0.00
|
| 10 | T5-01010001
| BASE, ROTARY BRACKET
| 0.00
|
| 11 | T5-01010100
| LOCKED BLOCK ASSY
| 0.00
|
| 12 | F4-01000003
| WASHER, NYLON
| 0.00
|
| 13 | F4-01010000
| RIGHT CLAMP BRACKET ASSY
| 6L8-G3111-01-4D
|
| 14 | GB/T5782-M8x140
| BOLT M8x140
| 0.00
|
| 15 | GB/T5782-M6x130
| BOLT M6x130
| 0.00
|
| 16 | F8-01010001
| BUSH, BOLT
| 0.00
|
| 17 | T5-01010005
| DAMPER RING, LOWER
| 0.00
|
| 18 | GB/T5783-M6x12
| BOLT M6x12
| 90119-06M73
|
| 19 | F4-01000007
| TWIST SPRING RIGHT
| 90508-14M11
|
| 20 | F4-01000006
| TWIST SPRING LEFT
| 90508-14M10
|
| 21 | T5-01010300
| TILT LOCKED HOOK ASSY
| 0.00
|
| 22 | T5-01010002
| SPRING, BRACKET | 0.00
|
| 23 | T5-01010400
| BRACKET ASYY, TILT LOCK
| 0.00
|
| 24 | F4-01030103
| JACKET, HANDLE
| 6E0-43632-00
|
| 25 | F8-01010105
| PRESS PLATE
| 0.00
|
| 26 | F8-01010103
| BUSH, NYLON
| 0.00
|
| 27 | F4-01020000
| LEFT CLAMP BRACKET ASSY
| 6L8-G3112-00-4D
|
| 28 | F4-01010004
| HANDLE, CLAMP
| 69M-G3118-00
|
| 29 | F4-01010005
| RIVET, CLAMP HANDLE
| 90243-04M01 |
| 30 | F4-01010002
| SCREW, CLAMP
| 6E0-43116-01
|
| 31 | F4-01010003
| CLAMP PLATE
| 6F5-43114-00
|
| 32 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 33 | GB/T889.1-M8
| LOCK NUT M8
| 0.00
|
| 34 | F4-01000002
| PLATE, TWO HOLE
| 68D-G3113-00
|
| 35 | F8-01010200
| LIMITATIVE ROD, TILT LOCK
| 0.00
|
| 36 | F4-01050002
| CONICAL SPRING
| 90502-08M05 |
