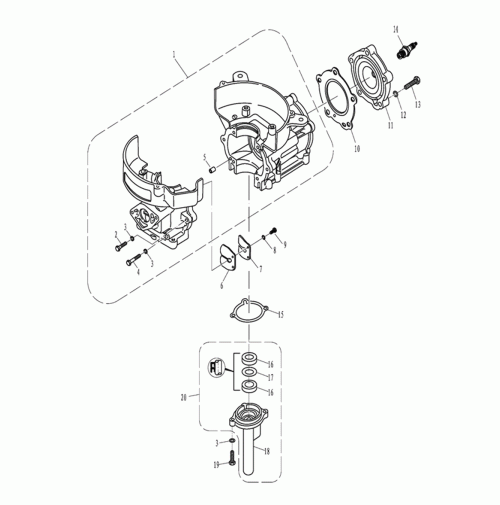

CRANKCASE 2 Strock For T5 T5.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T5-05010000 | CRANKCASE ASSY | 0.00 |
| 2 | GB/T5783-M6X35 | BOLT M6x35 | 0.00 |
| 3 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 4 | T5-05010004 | BOLT M6x55 | 0.00 |
| 5 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 6 | T5-05010202 | PLATE, INTAKE VALVE | 0.00 |
| 7 | T5-05010203 | LIMITATIVE PLATE, VALVE | 0.00 |
| 8 | GB/T93-4 | WASHER,SPRING 4 | 0.00 |
| 9 | GB/T818-M4x10 | SCREW M4x10 | 0.00 |
| 10 | T5-05000001 | GASKET, CYLINDER HEAD | 0.00 |
| 11 | T5-05000002 | CYLINDER COVER | 0.00 |
| 12 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 13 | T5-05000003 | BOLT M8x35 | 0.00 |
| 14 | BPR7HS | SPARK PLUG BPR7HS | 0.00 |
| 15 | T5-05030004 | GASKET, OIL SEAL CASING | 0.00 |
| 16 | T5-05030002 | OIL SEAL 10.1x25x7 | 0.00 |
| 17 | T5-05030003 | CIRCLIP, OIL SEAL | 0.00 |
| 18 | T5-05030001 | CASING, OIL SEAL | 0.00 |
| 19 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 20 | T5-05030000 | OIL SEAL CASING ASSY | 0.00 |
