FUEL TANK (12L) 2 Strock For T5 T5.8
- Brand: Yamaha
- Product Code: FUEL TANK (12L) 2 Strock For T5 T5.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

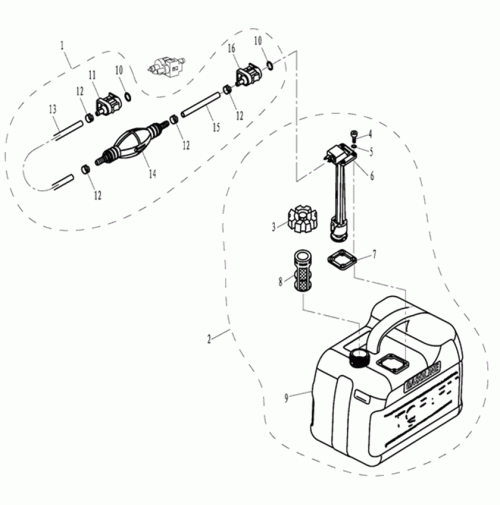

FUEL TANK (12L) 2 Strock For T5 T5.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | F15-09000000 | FUEL LINE ASSY | 6Y1-24306-02 |
| 2 | F8-10000000 | PORTABLE FUEL TANK ASSY 12L | 0.00 |
| 3 | F15-10010000 | FUEL TANK CAP ASSY | 6YJ-24610-01 |
| 4 | GB/T818-M5X16 | SCREW M5x16 | 90157-05M19 |
| 5 | GB/T97.1-5 | WASHER 5 | 6Y1-24329-00 |
| 6 | F15-10020000 | OLEOMETER ASSY | 6YJ-24260-00 |
| 7 | F15-10000003 | GASKET | 6Y1-24268-00 |
| 8 | F15-10000002 | FILTER, FUEL TANK | 6YJ-24167-00 |
| 9 | F8-10000001 | BODY, FUEL TANK | 0.00 |
| 10 | JASO-F404-78-031 | O-RING 7.8x3.1 | 0.00 |
| 11 | F15-09020000 | FUEL FITTING ASSY | 6G1-24305-05 |
| 12 | S7133-13.3 | CLAMP B | 0.00 |
| 13 | F15-09000001 | HOSE A 10x6x2080 | 90445-13M00-00 |
| 14 | F15-09030000 | PRIMER BULB ASSY | 61J-24360-00 |
| 15 | F15-09000002 | HOSE B 10x6x850 | 0.00 |
| 16 | F15-09010000 | FUEL FITTING ASSY | 6Y1-24305-04 |
