STEERING 2 Strock For T8 T9.8
- Brand: Yamaha
- Product Code: STEERING 2 Strock For T8 T9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

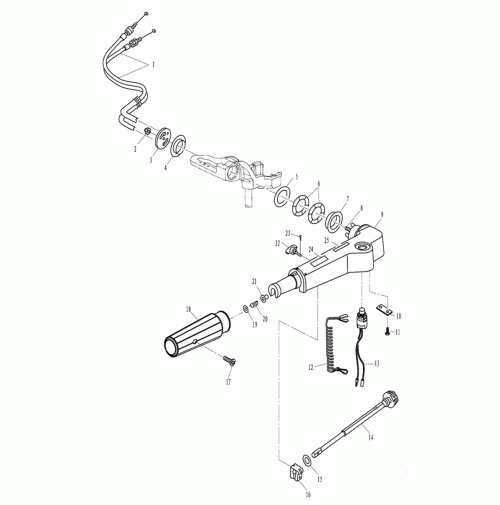

STEERING 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T8-01030100 | THROTTLE CABLE ASSY | 0.00 |
| 2 | GB/T889.1-M8 | LOCK NUT M8 | 0.00 |
| 3 | T15-01000005 | PLATE, HANDLE | 6G1-42131-01 |
| 4 | T15-01000004 | BUSH, HANDLE | 90386-33M96 |
| 5 | T15-01000003 | WASHER, NYLON | 90202-36M55 |
| 6 | T15-01000002 | WAVE WASHER | 90206-36M21 |
| 7 | T15-01000001 | BUSH, HANDLE | 90386-34M97 |
| 8 | T15-01020004 | BOLT STUD M8x25 | 0.00 |
| 9 | T15-01020001 | TILLER HANDLE | 6G1-42111-10-4D |
| 10 | T15-01020002 | FIXED PLATED, THROTTLE | 0.00 |
| 11 | GB/T818-M5X12 | SCREW M5x12 | 97885-05012 |
| 12 | F4-01090401 | STOPER, HANG ROPE ASSY | 682-82556-00 |
| 13 | T15-01020003 | ENGINE STOP SWITCH ASSY | 689-82575-04 |
| 14 | F4-01090100 | THROTTLE LEVER ASSY | 6G1-42138-01 |
| 15 | F4-01090004 | WASHER, NYLON | 0.00 |
| 16 | F4-01090003 | FRICTION, TILLER HANDLE | 6G1-42126-00 |
| 17 | GB/T820-M5X25 | SCREW M5x25 | 90152-05011 |
| 18 | T15-01020300 | GRIP ASSY, TILLER HANDLE | 6F6-42177-A0 |
| 19 | GB/T848-10 | WASHER 10 | 90201-10M02 |
| 20 | F4-01090007 | SPRING | 90501-23215 |
| 21 | F4-01090006 | BUSH | 90386-08032 |
| 22 | F4-01090200 | KNOB ASSY, FRICTION ADJUSTING | 6G1-42125-01 |
23 | GB/T91-1.6x12 | COTTER PIN 1.6x12 | 0.00 |
| 24 | F4-08000014 | MARK 14 | 0.00 |
| 25 | F4-08000016 | MARK 16 | 0.00 |
