BOTTOM COWLING 2 Strock For T8 T9.8
- Brand: Yamaha
- Product Code: BOTTOM COWLING 2 Strock For T8 T9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

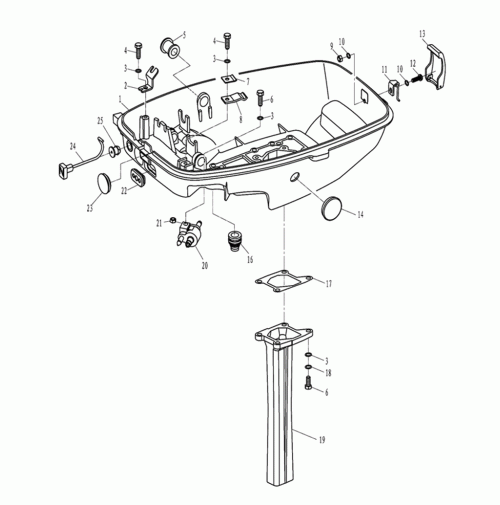

BOTTOM COWLING 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T8-03000001 | BOTTOM COWLING | 0.00 |
| 2 | T8-03010005 | FRAME, DETENT CABLE | 0.00 |
| 3 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 4 | GB/T5783-M6X16 | BOLT M6x16 | 0.00 |
| 5 | T8-03000006 | CIRCULAR PLUG | 0.00 |
| 6 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 7 | F8-03010006 | SPRING PLATE, SHIFT LEVER | 0.00 |
| 8 | F8-03010005 | SPRING, SHIFT LEVER | 0.00 |
| 9 | SPRING, SHIFT LEVER | LOCK NUT M5 | 90185-05002 |
| 10 | GB/T97.1-5 | WASHER 5 | 6Y1-24329-00 |
| 11 | F4-05000020 | LOCKING HOOK ASSY | 0.00 |
| 12 | GB/T818-M5X16 | SCREW M5x16 | 90157-05M19 |
| 13 | F4-05000023 | LOCKING HOOK ASSY | 0.00 |
| 14 | F2.6-05000004 | RUBBER PLUG, CIRCULAR | 0.00 |
| 16 | T8-03000009 | JACKET, SHIFT ROD | 0.00 |
| 17 | T8-05000008 | GASKET, EXHAUST PIPE | 0.00 |
| 18 | GB/T93-6 | WASHER, SPRING 6 | 92995-06100 |
| 19 | T8-05000007 | PIPE, EXHAUST | 0.00 |
| 20 | F4-05000200 | FUEL FITTING ASSY | 6G1-24304-02 |
| 21 | GB/T6170-M6 | NUT M6 | 95303-06600 |
| 22 | T8-03000015 | JACKET, THROTTLE CABLE | 0.00 |
| 23 | F25-03000003 | CIRCULAR PLUG | 676-42726-00 |
| 24 | T8-03000014 | HANDLE, CHOKE | 0.00 |
| 25 | T8-03000013 | RUBBER COLLAR, CHOKE | 0.00 |
