CONTROL SYSTEM 2 Strock For T8 T9.8
- Brand: Yamaha
- Product Code: CONTROL SYSTEM 2 Strock For T8 T9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

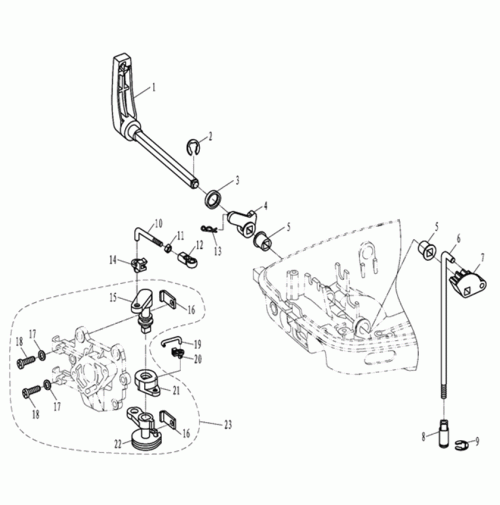

CONTROL SYSTEM 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T8-03010100 | SHIFT HANDLE ASSY | 0.00 |
| 2 | GB/T896-7 | CIRCLIP 7 | 0.00 |
| 3 | T8-03010001 | RUBBER RING, SHIFT HANDLE | 0.00 |
| 4 | T8-03010003 | SWING LINK, DETENT | 0.00 |
| 5 | T8-03010002 | WASHER, SHIFT HANDLE | 0.00 |
| 6 | T8-03000008 | SHIFT ROD | 0.00 |
| 7 | T8-03010006 | CAM PLATE, SHIFT | 0.00 |
| 8 | T8-03000010 | SHIFT ROD | 0.00 |
| 9 | GB/T896-9 | CIRCLIP 9 | 99080-09600 |
| 10 | T8-05000010 | LINK ASSY, STATOR COIL | 0.00 |
| 11 | GB/T6170-M5 | NUT M5 | 95380-05600 |
| 12 | T15-04040005 | TIE-IN, PULSER COIL | 682-41237-00 |
| 13 | F25-05160002 | SPRING 1 | 0.00 |
| 14 | F8-01010111 | JOINT, INNER FRAME | 0.00 |
| 15 | T8-05000605 | ROCKER, STATOR COIL | 0.00 |
| 16 | T8-05000606 | PLATE, THROTTLE CONTROL | 0.00 |
| 17 | GB/T93-5 | WASHER, SPRING 5 | 0.00 |
| 18 | GB/T818-M5X20 | SCREW M5x20 | 97880-05200 |
| 19 | T8-05000604 | LINK ROD, THROTTLE CONTROL | 0.00 |
| 20 | T6-05000022 | JOINT, THROTTLE LINK ROD | 6J8-41262-00 |
| 21 | T8-05000603 | ROCKER, THROTTLE ACTUATOR | 0.00 |
| 22 | T8-05000602 | DRIVE PULLEY, THROTTLE | 0.00 |
| 23 | T8-05000600 | INTAKE MAINFOLD ASSY | 0.00 |
