ELECTRICAL SYSTEM 2 Strock For T8 T9.8
- Brand: Yamaha
- Product Code: ELECTRICAL SYSTEM 2 Strock For T8 T9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

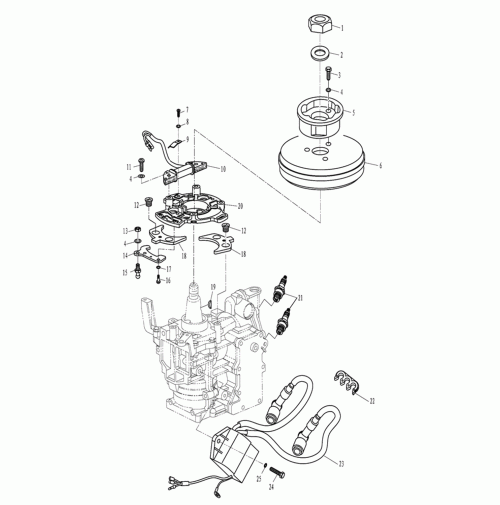

ELECTRICAL SYSTEM 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | F8-05000024 | NUT, FLY WHEEL | 0.00 |
| 2 | T15-04000011 | WASHER, FLY WHEEL | 90201-12472 |
| 3 | GB/T5783-M6X12 | BOLT M6x12 | 90119-06M73 |
| 4 | GB/T93-6 | WASHER, SPRING 6 | 92995-06100 |
| 5 | T8-05000015 | PULLEY, STARTER | 0.00 |
| 6 | T8-05040000 | FLYWHEEL ASSY | 0.00 |
| 7 | GB/T818-M4X6 | SCREW M4x6 | 0.00 |
| 8 | GB/T93-4 | WASHER,SPRING 4 | 0.00 |
| 9 | T8-05000703 | PLATE, WIRE | 0.00 |
| 10 | T8-05000702 | STATOR COIL ASSY | 0.00 |
| 11 | GB/T818-M6X25 | SCREW M6x25 | 0.00 |
| 12 | GB/T819.1-M6X12 | SCREW M6x12 | 0.00 |
| 13 | GB/T6170-M6 | NUT M6 | 95303-06600 |
| 14 | T8-05000705 | LIMITED BLOCK | 0.00 |
| 15 | T8-05000706 | JOINT, CONNECTING ROD | 0.00 |
| 16 | GB/T818-M5X10 | SCREW M5x10 | 97980-05310 |
| 17 | GB/T93-5 | WASHER, SPRING 5 | 0.00 |
| 18 | T8-05000704 | BLOCK, NYLON | 0.00 |
| 19 | T8-05000018 | WOODRUFF KEY, FLY WHEEL | 0.00 |
| 20 | T8-05000701 | BASE, STATOR COIL | 0.00 |
| 21 | BPR7HS | SPARK PLUG BPR7HS | 0.00 |
| 22 | F25-05000016 | CLAMP, NYLON | 0.00 |
| 23 | T8-05030000 | IGNITION COIL ASSY | 0.00 |
| 24 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 25 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
