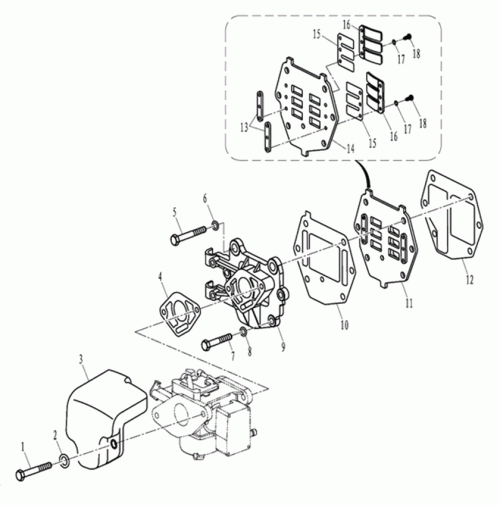

INTAKE SYSTEM 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | GB/T5782-M6x85 | BOLT M6x85 | 0.00 |
| 2 | GB/T96-6 | BIG WASHER 6 | 0.00 |
| 3 | T8-05000900 | SILENCER, INTAKE | 0.00 |
| 4 | T8-05000012 | GASKET, CARBURETOR | 0.00 |
| 5 | F25-05000035 | BOLT M8x80 | 0.00 |
| 6 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 7 | T8-05000020 | BOLT M6x75 | 0.00 |
| 8 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 9 | T8-05000601 | MANIFOLD, INTAKE | 0.00 |
| 10 | T8-05000009 | GASKET A, INTAKE VALVE | 0.00 |
| 11 | T8-05000500 | INTAKE VALVE ASSY | 0.00 |
| 12 | T8-05000014 | GASKET B, INTAKE VALVE | 0.00 |
| 13 | T8-05000504 | FIXED PLATE, VALE | 0.00 |
| 14 | T8-05000501 | SEAT, INTAKE VALVE | 0.00 |
| 15 | T8-05000502 | PLATE, INTAKE VALVE | 0.00 |
| 16 | T8-05000503 | LIMITATIVE PLATE, VALVE | 0.00 |
| 17 | GB/T93-3 | WASHER, SPRING 3 | 0.00 |
| 18 | GB/T818-M3X8 | SCREW M3x8 | 0.00 |
