CRANKSHAFT & PISTON 2 Strock For T8 T9.8
- Brand: Yamaha
- Product Code: CRANKSHAFT & PISTON 2 Strock For T8 T9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

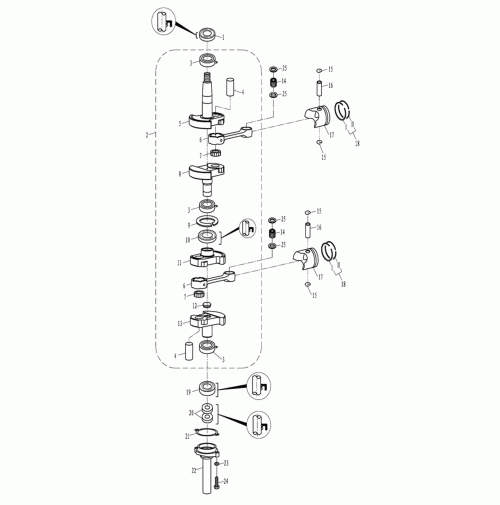

CRANKSHAFT & PISTON 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T8-05020001 | OIL SEAL 20x35x7 | 0.00 |
| 2 | T8-05020100 | CRANKSHAFT ASSY | 0.00 |
| 3 | T8-05020002 | BEARING 6204 WITH PIN | 9603-3-6204 |
| 4 | T8-05020102 | PIN, CRANKSHAFT | 0.00 |
| 5 | T8-05020101 | BLOCK, SWING A | 0.00 |
| 6 | T8-05020104 | CONNECTING ROD | 0.00 |
| 7 | T8-05020103 | NEEDLE BEARING 17X23X13.8 | 0.00 |
| 8 | T8-05020105 | BLOCK, SWING B | 0.00 |
| 9 | T8-05020106 | FIXED WASHER, CRANKSHAFT | 0.00 |
| 10 | T8-05020107 | OIL SEAL 25x47x7.5 | 0.00 |
| 11 | T8-05020108 | BLOCK, SWING C | 0.00 |
| 12 | T8-05020110 | JAM, SWING BLOCK | 0.00 |
| 13 | T8-05020109 | BLOCK, SWING D | 0.00 |
| 14 | T15-04020206 | NEEDLE BEARING 2X13.8 | 93602-14104 |
| 15 | GB/T895.1-14 | CIRCLIP 14 | 0.00 |
| 16 | T8-05020005 | PIN, PISTON | 0.00 |
| 17 | T8-05020004 | PISTON | 0.00 |
| 18 | T8-05020008 | PISTON RING ASSY | 0.00 |
| 19 | T8-05000402 | OIL SEAL 20x40x7 | 0.00 |
| 20 | F8-02000002 | GASKET, OIL SEAL CASING | 0.00 |
| 21 | T8-05000401 | CASING, OIL SEAL | 0.00 |
| 22 | T8-05000401 | CASING, OIL SEAL | 0.00 |
| 23 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 24 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 25 | T8-05020007 | WASHER, PISTON | 0.00 |
