CRANKCASE 2 Strock For T8 T9.8
- Brand: Yamaha
- Product Code: CRANKCASE 2 Strock For T8 T9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

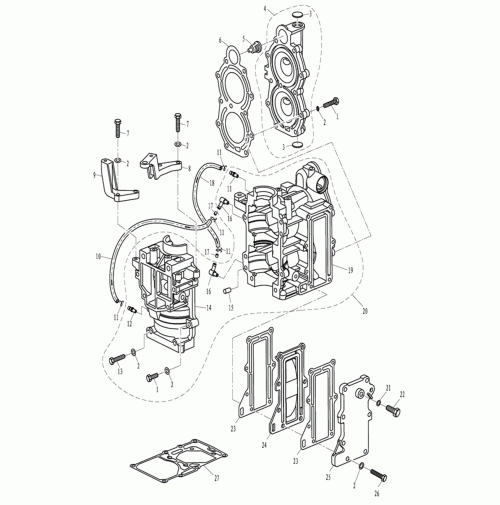

CRANKCASE 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T3.6-04000017 | BOLT M6x30 | 0.00 |
| 2 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 3 | T8-05000201 | PLUG, CYLINDER HEAD | 0.00 |
| 4 | T8-05000200 | CYLINDER COVER | 0.00 |
| 5 | T15-04000010 | THERMOSTAT | 688-12411-11 |
| 6 | T8-05000100 | GASKET, CYLINDER HEAD | 0.00 |
| 7 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 8 | T8-05000016 | LEFT BRACKET, STARTER | 0.00 |
| 9 | T8-05000017 | RIGHT BRACKET, STARTER | 0.00 |
| 10 | T8-05000001 | HOSE 4x8x120 | 0.00 |
| 11 | T8-05000019 | CLIP SPRING | 0.00 |
| 12 | T8-05010103 | PIPE, JOINT | 0.00 |
| 13 | T8-05000021 | BOLT M6x50 | 0.00 |
| 14 | T8-05010201 | CRANKCASE | 0.00 |
| 15 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 16 | T8-05010102 | PIPE, JOINT | 0.00 |
| 17 | T8-05000300 | CHECK VALVE ASSY | 0.00 |
| 18 | T8-05000002 | HOSE 4x8x230 | 0.00 |
| 19 | T8-05010101 | CYLINDER CASE | 0.00 |
| 20 | T8-05010000 | CRANKCASE ASSY | 0.00 |
| 21 | F4-03000024 | GASKET, SCREW PLUG | 90430-08020 |
| 22 | GB/T5783-M8X12 | BOLT M8x12 | 97313-08012 |
| 23 | T8-05000004 | GASKET, EXHAUST COVER | 0.00 |
| 24 | T8-05000003 | INNER COVER, EXHAUST | 0.00 |
| 25 | T8-05000005 | OUTER COVER, EXHAUST | 0.00 |
| 26 | GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00 |
| 27 | T8-00000006 | GASKET, ENGINE | 0.00 |
