STARTER 2 Strock For T8 T9.8
- Brand: Yamaha
- Product Code: STARTER 2 Strock For T8 T9.8
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

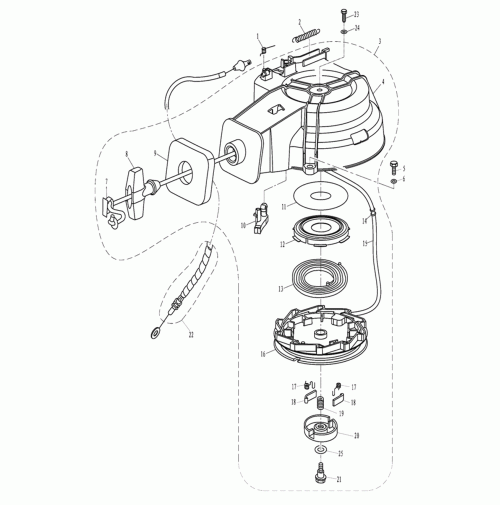

STARTER 2 Strock For T8 T9.8
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | F15-07130106 | SPRING, DETENT | 66T-15734-00 |
| 2 | F15-05000029 | SPRING, DETENT | 66T-15731-00 |
| 3 | T8-05050000 | STARTER ASSY | 0.00 |
| 4 | T8-05050100 | COVER ASSY, STARTER | 0.00 |
| 5 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 6 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 7 | F4-04130102 | HANDLE COVER, STARTER | 0.00 |
| 8 | F4-04130101 | STARTER HANDLE | 6G1-15755-00 |
| 9 | T8-05050002 | SEAL, FROTHY RUBBER | 0.00 |
| 10 | F15-07130105 | DETENT | 66T-15794-00 |
| 11 | F8-05050002 | WASHER, THRUST | 0.00 |
| 12 | F8-05050003 | BASE, VOLUTE SPRING | 0.00 |
| 13 | F8-05050004 | SPRING, VOLUTE | 0.00 |
| 14 | F4-04130013 | BUSH, START ROPE | 63V-15764-00 |
| 15 | F8-05050018 | START ROPE 4X1.62 | 0.00 |
| 16 | T8-05050001 | WHEEL, START-UP | 0.00 |
| 17 | F8-05050007 | SPRING, PAWL | 0.00 |
| 18 | F8-05050006 | PAWL, DRIVE | 0.00 |
| 19 | F8-05050009 | SPRING, PLATE | 0.00 |
| 20 | F8-05050008 | PLATE, START WHEEL | 0.00 |
| 21 | F8-05050010 | SCREW, PLATE | 0.00 |
| 22 | T8-05050200 | DETENT CABLE ASSY | 0.00 |
| 23 | GB/T5783-M5X8 | BOLT M5x8 | 0.00 |
| 24 | GB/T96-5 | BIG WASHER 5 | 0.00 |
| 25 | T20-03000002 | NYLON WASHER, SHIFT ROD | 9020-10024 |
