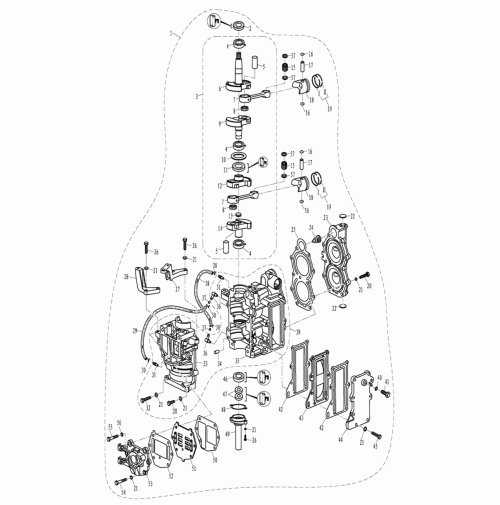

ENGINE ASSY (REPAIR KIT) 2 Strock For T8 T9.8
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | T8-05000000
| ENGINE ASSY
| 0.00
|
| 2 | T8-05020001
| OIL SEAL 20x35x7
| 0.00
|
| 3 | T8-05020100
| CRANKSHAFT ASSY
| 0.00
|
| 4 | T8-05020002
| BEARING 6204 WITH PIN
| 9603-3-6204
|
| 5 | T8-05020102
| PIN, CRANKSHAFT
| 0.00
|
| 6 | T8-05020101
| BLOCK, SWING A
| 0.00
|
| 7 | T8-05020104
| CONNECTING ROD
| 0.00
|
| 8 | T8-05020103
| NEEDLE BEARING 17X23X13.8
| 0.00
|
| 9 | T8-05020105
| BLOCK, SWING B
| 0.00
|
| 10 | T8-05020106
| FIXED WASHER, CRANKSHAFT
| 0.00
|
| 11 | T8-05020107
| OIL SEAL 25x47x7.5
| 0.00
|
| 12 | T8-05020108
| BLOCK, SWING C
| 0.00
|
| 13 | T8-05020110
| JAM, SWING BLOCK
| 0.00
|
| 14 | T8-05020109
| BLOCK, SWING D
| 0.00
|
| 15 | T15-04020206
| NEEDLE BEARING 2X13.8
| 93602-14104
|
| 16 | GB/T895.1-14
| CIRCLIP 14
| 0.00
|
| 17 | T8-05020005
| PIN, PISTON
| 0.00
|
| 18 | T8-05020004
| PISTON
| 0.00
|
| 19 | T8-05020008
| PISTON RING ASSY
| 0.00
|
| 20 | T3.6-04000017
| BOLT M6x30
| 0.00
|
| 21 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 22 | T8-05000201
| PLUG, CYLINDER HEAD
| 0.00
|
| 23 | T8-05000200
| CYLINDER COVER
| 0.00
|
| 24 | T15-04000010
| THERMOSTAT
| 688-12411-11
|
| 25 | T8-05000100
| GASKET, CYLINDER HEAD
| 0.00
|
| 26 | GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
| 27 | T8-05000016
| LEFT BRACKET, STARTER
| 0.00
|
| 28 | T8-05000017
| RIGHT BRACKET, STARTER
| 0.00
|
| 29 | T8-05000001
| HOSE 4x8x120
| 0.00
|
30
| T8-05000019
| CLIP SPRING
| 0.00
|
| 31 | T8-05010103
| PIPE, JOINT
| 0.00
|
| 32 | T8-05000021
| BOLT M6x50
| 0.00
|
| 33 | T8-05010201
| CRANKCASE
| 0.00
|
| 34 | F15-00000006
| PIN 6x12
| 93606-12019
|
| 35 | T8-05010101
| CYLINDER CASE
| 0.00
|
| 36 | T8-05010102
| PIPE, JOINT
| 0.00
|
| 37 | T8-05000300
| CHECK VALVE ASSY
| 0.00
|
| 38 | T8-05000002
| HOSE 4x8x230
| 0.00
|
| 39 | T8-05010000
| CRANKCASE ASSY
| 0.00
|
| 40 | F4-03000024
| GASKET, SCREW PLUG
| 90430-08020
|
| 41 | GB/T5783-M8X12
| BOLT M8x12
| 97313-08012
|
| 42 | T8-05000004
| GASKET, EXHAUST COVER
| 0.00
|
| 43 | T8-05000003
| INNER COVER, EXHAUST
| 0.00
|
| 44 | T8-05000005
| OUTER COVER, EXHAUST
| 0.00
|
| 45 | GB/T9074.14-M6X25
| BOLT M6x25
| 97095-06025-00
|
| 46 | T8-05000402
| OIL SEAL 20x40x7
| 0.00
|
| 47 | F8-02000002
| OIL SEAL 12.1x28x5
| 0.00
|
| 48 | T8-05000006
| GASKET, OIL SEAL CASING
| 0.00
|
| 49 | T8-05000401
| CASING, OIL SEAL
| 0.00
|
| 50 | T8-05000014
| GASKET B, INTAKE VALVE
| 0.00
|
| 51 | T8-05000500
| INTAKE VALVE ASSY
| 0.00
|
| 52 | T8-05000009
| GASKET A, INTAKE VALVE
| 0.00
|
| 53 | T8-05000601
| MANIFOLD, INTAKE
| 0.00
|
| 54 | T8-05000020
| BOLT M6x75
| 0.00
|
| 55 | F25-05000035
| BOLT M8x80
| 0.00
|
| 56 | GB/T97.1-8
| WAHSER 8
| 92995-08100
|
| 57 | T8-05020007
| WASHER, PISTON
| 0.00
|
