STEERING 2 Strock for TE9.9 TE15
- Brand: Yamaha
- Product Code: STEERING 2 Strock for TE9.9 TE15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

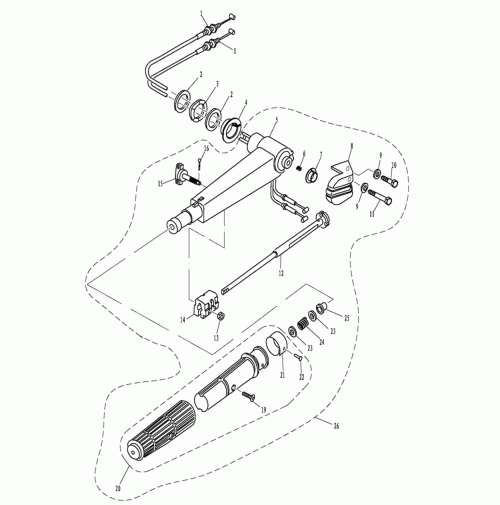

STEERING 2 Strock for TE9.9 TE15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T15-01020100 | THROTTLE CABLE ASSY | 6L2-26301-00 |
| 2 | T20-01000011 | WAVE WAHSER | 90201-28013 |
| 3 | T20-01000010 | WAVE WASHER | 90206-28001 |
| 4 | TE15-01000005 | BUSH, HANDLE | 90381-35001 |
| 5 | TE15-01030001 | TILLER HANDLE | 6B4-42111-00-4D |
| 6 | T20-01000012 | SPRING, | 0.00 |
| 7 | TE15-01000006 | DAMPER, HANDLE | 90381-20001 |
| 8 | TE15-01000007 | PLATE, HANDLE | 6B4-42131-00-4D |
| 9 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 10 | GB/T5783-M8X30 | BOLT M8x30 | 90119-08102 |
| 11 | GB/T5782-M8x55 | BOLT M8x55 | 0.00 |
| 12 | TE15-01030002 | LEVER, THROTTLE | 6B4-42138-00 |
| 13 | GB/T6170-M6 | NUT M6 | 95303-06600 |
| 14 | TE15-01030003 | FRICTION BLOCK | 6B4-42126-00 |
| 15 | F4-01090200 | KNOB ASSY, FRICTION ADJUSTING | 6G1-42125-01 |
| 16 | GB/T91-1.6x12 | COTTER PIN 1.6x12 | 0.00 |
| 19 | GB/T820-M5x25 | SCREW M5x25 | 90152-05011 |
| 20 | T15-01020300 | GRIP ASSY, TILLER HANDLE | 6F6-42177-A0 |
| 21 | T15-01020303 | INDICATOR, THROTTLE | 6H2-42137-00 |
| 22 | GB/T827-2x5 | RIVET 2x5 | 0.00 |
| 23 | GB/T848-10 | WASHER 10 | 90201-10M02 |
| 24 | F4-01090007 | SPRING | 90501-23215 |
| 25 | F4-01090006 | BUSH | 90386-08032 |
| 26 | TE15-01030000 | TILLER HANDLE ASSY | 6B4-W0084-00 |
