UPPER CASING 2 Strock for TE9.9 TE15
- Brand: Yamaha
- Product Code: UPPER CASING 2 Strock for TE9.9 TE15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

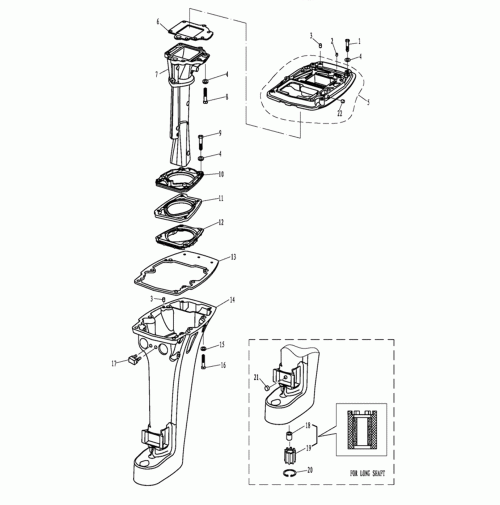

UPPER CASING 2 Strock for TE9.9 TE15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | GB/T9074.14-M6X30 | BOLT M6x30 | 0.00 |
| 2 | TE15-02000015 | PIPE, JOINT | 0.00 |
| 3 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 4 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 5 | TE15-02010000 | SEAT ASSY, EXHAUST MANIFOLD | 6B4-41137-00-5B |
| 6 | TE15-02010002 | GASKET, EXHAUST PIPE | 682-41133-A0 |
| 7 | TE15-02010003 | PIPE, EXHAUST | 6B4-41131-00-CA |
| 8 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 9 | GB/T9074.14-M6X25 | BOLT M6x25 | 97095-06025-00 |
| 10 | TE15-02000005 | UPPER SPACER, EXHAUST | 682-41116-00-CA |
| 11 | TE15-02000004 | SEAL, EXHAUST | 682-45127-00 |
| 12 | TE15-02000003 | LOWER SPACER, EXHAUST | 682-45126-01-CA |
| 13 | TE15-02000012 | GASKET, EXHAUST SEAT | 682-45113-A2 |
| 14 | TE15-02000001L | UPPER CASING L | 682-45111-15-4D |
| TE15-02000001S | UPPER CASING S | 682-45111-05-4D | |
| 15 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 16 | TE15-00000006 | BOLT M8x50 | 0.00 |
| 17 | TE15-02000002 | STOPPER, RUBBER | 682-44532-00 |
| 18 | TE15-02000016 | BUSH, DRIVE SHAFT | 6B4-45318-00 |
| 19 | TE15-02000017 | RUBBER BUSH | 0.00 |
| 20 | GB/T893.1-30 | CIRCLIP 30 | 93420-30042 |
| 21 | TE15-02000001L-1 | PLUG, UPPER CASING | 0.00 |
| 22 | TE15-02000018 | JAM, EXHAUST SEAT | 0.00 |
