CONTROL SYSTEM 2 Strock for TE9.9 TE15
- Brand: Yamaha
- Product Code: CONTROL SYSTEM 2 Strock for TE9.9 TE15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

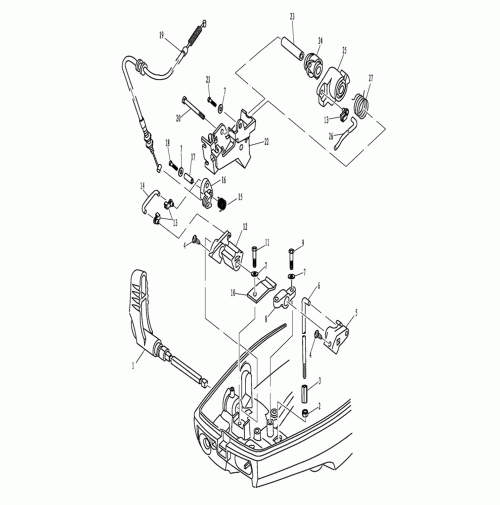

CONTROL SYSTEM 2 Strock for TE9.9 TE15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | TE15-03000004 | HANDLE, SHIFT | 6B4-44111-00-4D |
| 2 | GB/T6172.1-M6 | THIN NUT M6 | 95380-06700 |
| 3 | F15-05000035 | NUT, PLUNGER | 63V-15746-00 |
| 4 | GB/T845-ST4.2x19 | SCREW ST4.2x10 | 0.00 |
| 5 | TE15-03000007 | ROCKER ARM, SHIFT ROD | 6B4-44121-00 |
| 6 | TE15-03000003 | SHIFT ROD | 6B4-44143-00 |
| 7 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 8 | TE15-03000006 | BRACKET, SHIFT ROD | 6B4-41662-00 |
| 9 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 10 | TE15-03000008 | SPRING, SHIFT LEVER | 6B4-44116-00 |
| 11 | GB/T5783-M6x16 | BOLT M6x16 | 0.00 |
| 12 | TE15-03000005 | CAM PLATE, SHIFT | 6B4-44125-00 |
| 13 | F15-07000016 | JOINT, THROTTLE ACTUATOR | 661-41262-02 |
| 14 | T15-04000019 | LINK ROD, DETENT | 6L2-15747-00 |
| 15 | T15-04000021 | SPRING, DETENT | 90508-08M39 |
| 16 | T15-04000020 | ROCKER B, DETENT | 6B4-15746-00 |
| 17 | T15-04000022 | WASHER, DETENT | 90387-06M06 |
| 18 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 19 | T15-04000800A | DETENT CABLE ASSY | 0.00 |
| 20 | GB/T5782-M6x65 | BOLT M6x65 | 0.00 |
| 21 | GB/T5783-M6x12 | BOLT M6x12 | 90119-06M73 |
| 22 | T15-04030001 | PLATE, THROTTLE ACTUATOR | 63V-14497-02 |
| 23 | T15-04030003 | BUSH, THROTTLE ACTUATOR | 90387-06M50 |
| 24 | T15-04030004 | DRIVE PULLEY, THROTTLE | 6B4-41638-00 |
| 25 | TE15-05020001 | PULLBY, THROTTLE CONTROL | 6B4-41283-00 |
| 26 | T15-04000014 | LINK ROD, THROTTLE | 63V-41211-00 |
| 27 | T15-04030006 | SPRING, DRIVE WHEEL | 90508-16M37 |
