LOWER CASING & DRIVE II - 2 Strock for TE9.9 TE15
- Brand: Yamaha
- Product Code: LOWER CASING & DRIVE II - 2 Strock for TE9.9 TE15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

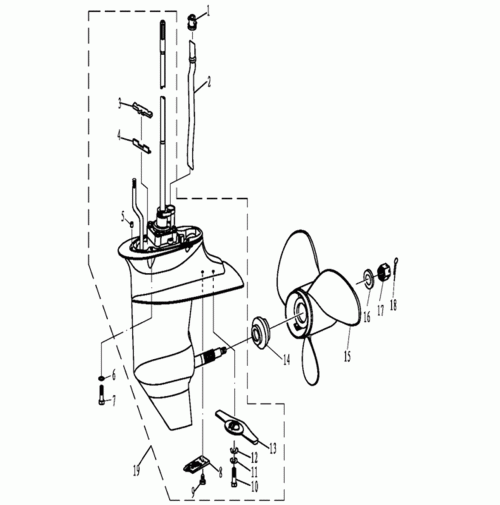

LOWER CASING & DRIVE II - 2 Strock for TE9.9 TE15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | TE15-02000013 | BUSH, WATER TUBE | 626-44365-01 |
| 2 | TE15-02000014L | WATER TUBE L | 6B4-44361-10 |
| TE15-02000014S | WATER TUBE S | 6B4-44361-01 | |
| 3 | TE15-04000016 | WATER SEAL | 682-45376-01 |
| 4 | TE15-04000017 | PLATE, WATER SEAL | 682-45375-01 |
| 5 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 6 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 7 | GB/T9074.14-M8X35 | BOLT M8x35 | 90119-08M10 |
| 8 | TE15-04000022 | WATER INLET | 6E7-45214-00 |
| 9 | GB/T818-M5X12 | SCREW M5x12 | 97885-05012 |
| 10 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 11 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 12 | GB/T86.1-6 | LOCKING WASHING 6 | 90209-06M05 |
| 13 | TE15-04000021 | ANODE | 6B4-45251-00 |
| 14 | F15-06000015 | SPACER, PROPELLER | 6E7-45987-01 |
| 15 | TE15-04020000 | PROPELLER ASSY 3-9 1/4"x10" | 63V-45952-10 |
| F20-04050000 | PROPELLER ASSY 3-9 1/4"x12" | 0.00 | |
| F15-06090000-11 | PROPELLER ASSY 3-9 1/4"x11" | 0.00 | |
| F15-06090000-8 | PROPELLER ASSY 3-9 1/4"x8" | 63V-45947-00-EL |
| 16 | GB/T96-10 | BIG WASHER 10 | 0.00 |
| 17 | F15-06000016 | SLOTTED NUT | 90171-10M01 |
| 18 | GB/T91-2.5X20 | COTTER PIN 2.5x20 | 91490-30020 |
| 19 | TE15-04000000L | LOWER CASING ASSY L | 6B4-45300-10-4D |
| TE15-04000000S | LOWER CASING ASSY S | 6B4-95300-00-4D |
