INTAKE 2 Strock for TE9.9 TE15
- Brand: Yamaha
- Product Code: INTAKE 2 Strock for TE9.9 TE15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

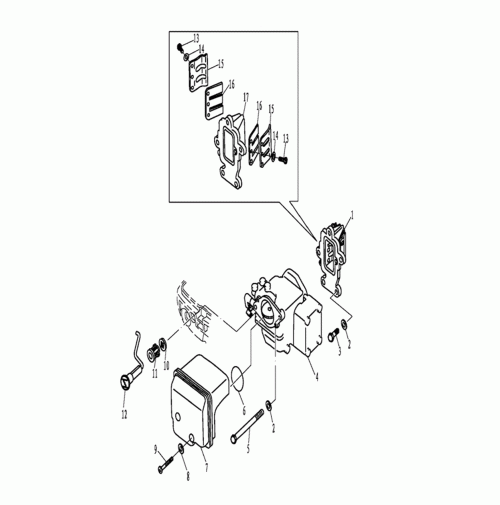

INTAKE 2 Strock for TE9.9 TE15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T15-04050000 | INTAKE VALVE ASSY | 63W-13610-00 |
| 2 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 3 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 4 | TE15-05010000 | CARBURETOR ASSY | 6B4-14301-00 |
| 5 | GB/T5782-M6x100 | BOLT M6x100 | 0.00 |
| 6 | JASO-F404-19-036 | O-RING 35.2x1.9 | 0.00 |
| 7 | TE15-05000500 | INTAKE SILENCER ASSY | 6B4-14440-00 |
| 8 | GB/T97.1-5 | WASHER 5 | 6Y1-24329-00 |
| 9 | GB/T818-M5x30 | SCREW M5x30 | 98503-05028 |
| 10 | TE15-03000015 | RUBBER SHEATH | 6B4-41274-00 |
| 11 | TE15-03000014 | ORIENTED BUSH, AIRCHOKE | 6B4-41273-00 |
| 12 | TE15-03000013 | HANDLE, CHOKE | 6B4-41271-01 |
| 13 | GB/T818-M3x6 | SCREW M3x6 | 0.00 |
| 14 | GB/T93-3 | WASHER, SPRING 3 | 0.00 |
| 15 | T15-04050002 | LIMITATIVE PLATE, VALVE | 0.00 |
| 16 | T15-04050001 | PLATE, INTAKE VALVE | 0.00 |
| 17 | T15-04050100 | INTAKE VALVE SEAL SEAT | 0.00 |
