CRANKSHAFT & PISTON 2 Strock for TE9.9 TE15
- Brand: Yamaha
- Product Code: CRANKSHAFT & PISTON 2 Strock for TE9.9 TE15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

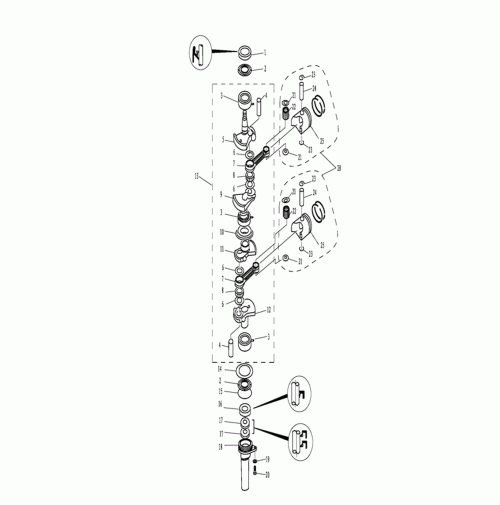

CRANKSHAFT & PISTON 2 Strock for TE9.9 TE15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T15-04020107 | OIL SEAL 23x36x13-2 | 93110-23M00 |
| 2 | T15-04020002 | COVER PLATE, BEARING | 63V-11445-00 |
| 3 | 6205LT | BEARING 6205 LT | 93306-205A1 |
| 4 | T15-04020102 | PIN, CRANKSHAFT | 682-11681-00 |
| 5 | T15-04020106 | BLOCK, SWING D | 63V-11412-00 |
| 6 | T15-04020103 | THRUST WASHER | 90209-20M23 |
| 7 | T15-04020201A | CONNECTING ROD | 6K4-11651-00 |
| 8 | T15-04020108 | NEEDLE BEARING | 93310-620V5 |
| 9 | T15-04020105 | BLOCK, SWING C | 63V-11422-00 |
| 10 | T15-04020300 | SEAL RETAINER ASSY | 63V-11515-02 |
| 11 | T15-04020104 | BLOCK, SWING B | 63V-11432-00 |
| 12 | T15-04020101 | BLOCK, SWING A | 63V-11442-00 |
| 13 | T15-04020100A | CRANKSHAFT ROD ASSY | 63V-11400-01 |
| 14 | T15-04020001 | FIXED WASHER, CRANKSHAFT | 90201-46M29 |
| 15 | T15-04010402 | O-RING | 93210-46M16 |
| 16 | T15-04010403 | OIL SEAL A 25x38x7 | 93102-25M48 |
| 17 | F15-04000008 | OIL SEAL 13x25x6 | 93101-13018 |
| 18 | TE15-05000601 | CASING, OIL SEAL | 6B4-15396-00-CA |
| 19 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 20 | GB/T5783-M6x16 | BOLT M6x16 | 0.00 |
| 21 | T15-04020205 | WASHER, PISTON | 90201-14377 |
| 22 | T15-04020206 | NEEDLE BEARING 2X13.8 | 93602-14104 |
| 23 | F15-07020005 | CIRCLIP | 93450-15023 |
| 24 | F15-07020006 | PIN, PISTON | 682-11633-00 |
| 25 | T15-04020202 | PISTON | 6E7-11631-00-97 |
| 26 | T15-04020500 | PISTON RING ASSY | 682-11610-01 |
| 28 | T15-04020400 | PISTON KITS | 6E7-11631-00 |
