STARTER 2 Strock for TE9.9 TE15
- Brand: Yamaha
- Product Code: STARTER 2 Strock for TE9.9 TE15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

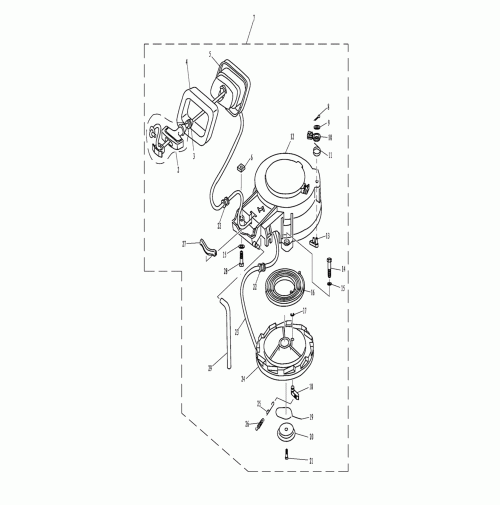

STARTER 2 Strock for TE9.9 TE15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 2 | F4-04130100 | STARTER HANDLE ASSY | 6G1-15755-00 |
| 3 | F25-05160021 | DAMPER, HANDLE | 697-15789-00 |
| 4 | TE15-05030002 | SEAL, FROTHY RUBBER | 6B4-15762-00 |
| 5 | TE15-05030200 | BRACKET, STARTER | 6B4-15758-10 |
| 6 | TE15-05030004 | SQUARE NUT M6 | 90173-06004 |
| 7 | TE15-05030000 | STARTER ASSY | 6B4-15710-00 |
| 8 | GB/T91-1.6x18 | COTTER PIN 1.6x8 | 0.00 |
| 9 | T15-04070004 | WASHER, DETENT | 63V-15726-00 |
| 10 | T15-04070003 | ROCKER, DETENT | 63V-15748-00 |
| 11 | T15-04070002 | SPRING, DETENT | 63V-15734-00 |
| 12 | TE15-05030100 | CASING, STARTER | 0.00 |
| 13 | T15-04070001 | DETENT | 63V-15734-00 |
| 14 | GB/T9074.14-M6X20 | BOLT M6x20 | 63V-15794-00 |
| 15 | GB/T97.1-6 | WASHER 6 | 97095-06020-00 |
| 16 | F15-07130107 | SPRING, VOLUTE | 63V-15713-00 |
| 17 | GB/T896-8 | CIRCLIP 8 | 99001-08600 |
| 18 | F15-07130202 | PAWL, DRIVE | 63V-15741-00 |
| 19 | F15-07130002 | SPRING, DRIVE PLATE | 63V-15705-01 |
| 20 | F15-07130001 | PLATE, DRIVE | 63V-15716-00 |
| 21 | GB/T5783-M6x16 | BOLT M6x16 | 0.00 |
| 22 | F4-04130013 | BUSH, START ROPE | 63V-15764-00 |
| 23 | F15-07130205 | START ROPE 4X1.78 | 96890-44373 |
| 24 | F15-07130201 | WHEEL, START-UP | 63V-15714-00 |
| 25 | F15-07130204 | LINK, PAWL | 63V-15784-01 |
| 26 | F15-07130203 | SPRING, PAWL | 63V-15767-00 |
| 27 | TE15-05030001 | DAMPER, SUPPORT | 6B4-15663-00 |
| 28 | GB/T9074.14-M6X35 | BOLT M6x35 | 0.00 |
| 29 | TE15-05030003 | HOSE 5x10x200 | 6J8-24311-00 |
| T15-04070007 | WAHSER, START WHEEL | 0.00 |
