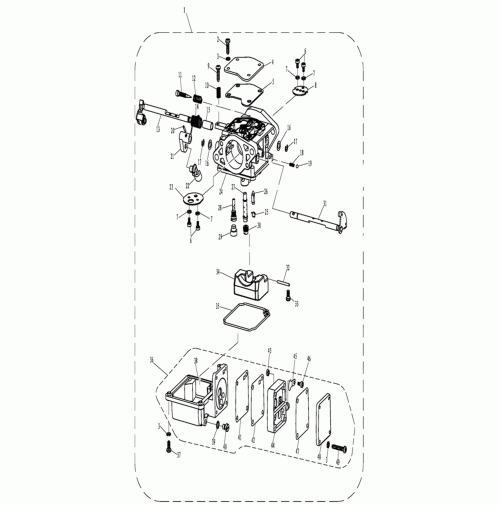

CARBURETOR ASSY - 2 Strock for TE9.9 TE15
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | TE15-05010000
| CARBURETOR ASSY
| 6B4-14301-00
|
| 2 | GB/T818-M4x10
| SCREW M4x10
| 0.00
|
| 3 | GB/T93-4
| WASHER,SPRING 4
| 0.00
|
| 4 | TE15-05010003
| PLATE
| 0.00
|
| 5 | TE15-05010002
| GASKET
| 0.00
|
| 6 | GB/T818-M3x6
| SCREW M3x6
| 0.00
|
| 7 | GB/T94.1-3
| WASHER, SPRING 3
| 0.00
|
| 8 | TE15-05010004
| DAMPER, THROTTLE
| 0.00
|
| 9 | TE15-05010006
| STOP SCREW, THROTTLE
| 0.00
|
| 10 | TE15-05010007
| SPRING, STOP SCREW
| 0.00
|
| 11 | TE15-05010019
| SCREW, AIR ADJUSTING
| 0.00
|
| 12 | TE15-05010005
| SPRING, AIR ADJUSTING
| 0.00
|
| 13 | TE15-05010100
| SWING LINK ASSY, THROTTLE
| 0.00
|
| 14 | TE15-05010103
| SPRING, SWING LINK
| 0.00
|
| 15 | TE15-05010101
| BUSH, SWING LINK
| 0.00
|
| 16 | TE15-05010102
| WASHER, SWING SHAFT
| 0.00
|
| 17 | GB/T896-4
| CIRCLIP 4
| 0.00
|
| 18 | TE15-05010203
| SRPING, SWING SHAFT
| 0.00
|
| 19 | TE15-05010202
| BALL, SWING SHAFT
| 0.00
|
| 20 | GB/T897.2-2X10
| PIN 2x10
| 0.00
|
| 21 | TE15-05010204
| ROCKER, SWING LINK
| 0.00
|
| 22 | TE15-05010008
| JOINT, CHOKE LINKER
| 0.00
|
| 23 | TE15-05010205
| BAFFLE PLATE, CHOKE
| 0.00
|
| 24 | TE15-05010001
| BODY, CARBURETOR
| 0.00
|
| 25 | TE15-05010013
| SPRING, NEEDLE VALVE
| 0.00
|
| 26 | TE15-05010012
| NEEDLE VALVE
| 6G1-14561-01
|
| 27 | TE15-05010010
| MAIN NOZZLE
| 0.00
|
| 28 | TE15-05010020
| JET, AIR SLOW
| 0.00
|
| 29 | TE15-05010009
| RUBBER CAP
| 0.00
|
| 30 | TE15-05010011
| JET, MAIN
| 0.00
|
| 31 | TE15-05010201
| SWING LINK, CHOKE
| 0.00
|
| 32 | TE15-05010014
| PIN, FLOAT
| 0.00
|
| 33 | GB/T818-M4x8
| SCREW M4x8
| 68580-04008
|
| 34 | TE15-05010015
| FLOAT
| 0.00
|
| 35 | TE15-05010016
| O-RING, CARBURETOR
| 63V-14984-00-00
|
| 36 | TE15-05010300
| FLOAT CHAMBER ASSY
| 0.00
|
| 37 | GB/T818-M4x14
| SCREW M4x14
| 97980-04114
|
| 38 | TE15-05010301
| FLOAT CHAMBER
| 0.00
|
| 39 | TE15-05010017
| GASKET, DRAIN BOLT
| 0.00
|
| 40 | TE15-05010018
| SCREW, DRAIN
| 0.00
|
| 41 | T15-04060302
| UPPER DIAPHRAGM
| 0.00
|
| 42 | T15-04060303
| GASKET,FUEL PUMP COVER
| 0.00
|
| 43 | GB/T6170-M3
| NUT M3
| 95380-03600
|
| 44 | T15-04060304
| COVER, FUEL PUMP
| 6G1-24412-01
|
| 45 | F4-04090005
| PLATE, CHECK VALVE
| 6L5-24421-00
|
| 46 | GB/T818-M3x5
| SCREW M3x5
| 0.00
|
| 47 | T15-04060307
| LOWER DIAPHRAGM
| 63V-24411-00
|
| 48 | T15-04060308
| LOWER COVER, FUEL PUMP
| 0.00
|
| 49 | GB/T818-M4x22
| SCREW M4x22
| 0.00
|
