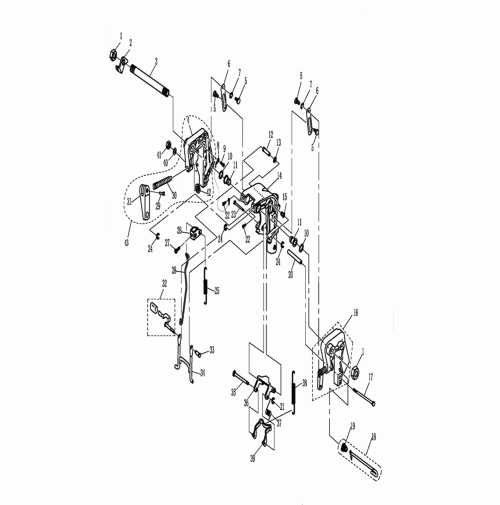

BRACKET 1 - 2 Strock for T9.9 T15
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | F15-01010007 | NUT, SELF-LOCKING | 90185-22043
|
| 2 | F15-01010003 | PLATE, TWO HOLE | 6J8-43113-01
|
| 3 | F15-01010001 | DOUBLE-EDGED TUBE | 63W-43131-10
|
| 4 | F15-01010201 | CLAMP BRACKET, RIGHT | 63V-43112-01-4D
|
| 5 | F15-01010103 | SCREW, FLAT HEXAGON | 90109-06M69
|
| 6 | F15-01010105 | PLATE, TILT STOPPER | 63V-43181-00
|
| 7 | F15-01010104 | WAVE WASHER | 90206-10M24
|
| 8 | F15-01010202 | EARTH WIRE A | 6E5-82148-00
|
| 9 | GB/T818-M6x8 | SCREW M6x8 | 0.00
|
| 10 | F15-01010002
| WASHER, NYLON
| 90202-22M54
|
| 11 | F15-01010302
| BUSH, ROTARY BRACKET
| 90386-22M94
|
| 12 | F15-01010308
| BUSH, TILT LOCK
| 0.00
|
| 13 | F15-01010309
| WASHER, NYLON
| 0.00
|
| 14 | T15-01010301
| BRACKET, ROTARY
| 63V-43311-00-4D
|
| 15 | F15-01010311
| BUSH, NYLON
| 0.00
|
| 16 | F15-01010100
| LEFT CLAMP BRACKET ASSY
| 63V-43111-00-4D
|
| 17 | GB/T5782-M6x145
| BOLT M6x145
| 0.00
|
| 18 | F15-01010400
| LIMITATIVE ROD, TILT LOCK
| 689-43160-00
|
| 20 | F15-01010006
| TUBE, BOLT
| 90387-06M13
|
| 21 | GB/T896-4
| CIRCLIP 4
| 0.00
|
| 22 | GB/T818-M8x10
| SCREW M8x10
| 0.00
|
| 23 | F15-01010316
| LOCK ANGLE L
| 63V-43659-00
|
| 24 | GB/T896-5
| CIRCLIP 5
| 99080-05600
|
| 25 | F15-01010304
| SPRING, TENSION
| 90507-20M00
|
| 26 | F15-01010306
| LEVER, TILT LOCK
| 63V-43641-00
|
| 27 | GB/T818-M5x6
| SCREW M5x6
| 0.00
|
| 28 | F15-01010307A
| ROD, LOCKED BRACKET
| 0.00
|
| 29 | F4-01010005
| RIVET, CLAMP HANDLE
| 90243-04M01
|
| 30 | F25-01010104
| SCREW, CLAMP
| 90149-14M12
|
| 31 | F4-01010004
| HANDLE, CLAMP
| 69M-G3118-00
|
| 32 | F15-01010305
| TILT CLAMP HANDLE ASSY
| 63V-43630-00
|
| 33 | F15-01010312
| SHAFT, STOPPER
| 63V-43191-00
|
| 34 | F15-01010313
| SUPPORT BRACKET ASSY
| 63V-43350-00-4D
|
| 35 | F15-01010317-3
| LOCK ANGLE S
| 63V-43611-00
|
| 36 | F15-01010317-2 | OUT BRACKET, TILT LOCK | 63V-43615-00
|
| 37 | F15-01010315
| SPRING, TENSION
| 0.00
|
| 38 | F15-01010314A
| SPRING, TENSION
| 63V-43656-00
|
| 39 | F15-01010317-1
| INNER BRACKET, TILT LOCK
| 63V-43614-00
|
| 40 | GB/T848-6
| WASHER 6
| 92990-06600
|
| 41 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 42 | F4-01010003
| CLAMP PLATE
| 6F5-43114-00
|
| 43 | F15-01010200
| RIGHT CLAMP BRACKET ASSY
| 63V-43112-01-4D
|
