BRACKET 2 - 2 Strock for T9.9 T15
- Brand: Yamaha
- Product Code: BRACKET 2 - 2 Strock for T9.9 T15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

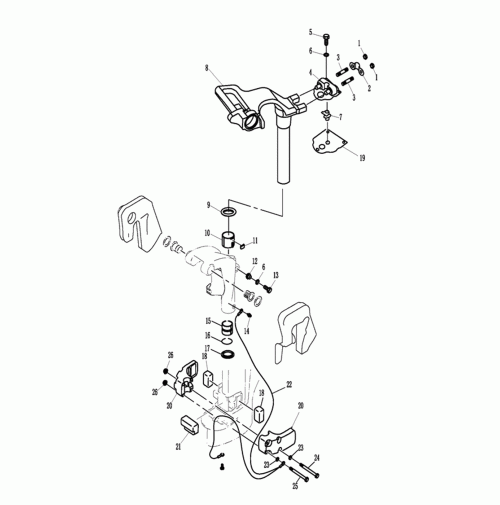

BRACKET 2 - 2 Strock for T9.9 T15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | GB/T6170-M8 | NUT M8 | 95380-08600 |
| 2 | T15-00000001 | PLATE | 63V-44526-00 |
| 3 | GB/T900-M8x50 | BOLT STUD M8x50 | 0.00 |
| 4 | T15-02010000 | ABSORBER ASSY, DOUBLE HOLE | 63V-44514-00-5B |
| 5 | GB/T5783-M6x18 | BOLT M6x18 | 0.00 |
| 6 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 7 | T15-02000003 | SEAL, WATER TUBE | 63V-44366-00 |
| 8 | T15-01010001 | BRACKET, HELM | 63V-42511-01-4D |
| 9 | 63V-42511-01-4D | WASHER, ROTARY BRACKET | 63V-42537-00 |
| 10 | F15-01000001 | BUSH, ROTARY BRACKET | 65F-42537-00 |
| 11 | F15-01000002 | PLATE, LOCK | 63V-42528-00 |
| 12 | F15-01010303 | SEAL, LOCK BOLT | 689-43373-01 |
| 13 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 14 | JB/T9740.1-M6 | NIPPLE, GREASE M6 | 93700-06M03 |
| 15 | F15-01000004 | BUSH, ROTARY BRACKET | 90386-30048 |
| 16 | GB/T3452.1-30x3.55 | O-RING 30x3.55 | 0.00 |
| 17 | F15-01000006 | WASHER, ROTARY BRACKET | 90386-30M60 |
| 18 | T15-00000006 | MOUNT DAMPER | 682-44555-00 |
| 19 | T15-02000002 | GASKET, MOUNT DAMPER | 63V-45114-A0 |
| 20 | T15-00000005 | COVER, ABSORBER | 63V-44551-00-4D |
| 21 | T15-00000007 | DAMPER, FRONT | 63V-44557-00 |
| 22 | T15-02010100 | EARTH WIRE B | 63V-82127-00 |
| 23 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 24 | GB/T5782-M6x75 | BOLT M6x75 | 0.00 |
| 25 | GB/T5782-M6x55 | BOLT M6x55 | 0.00 |
| 26 | GB/T6170-M6 | NUT M6 | 95303-06600 |
