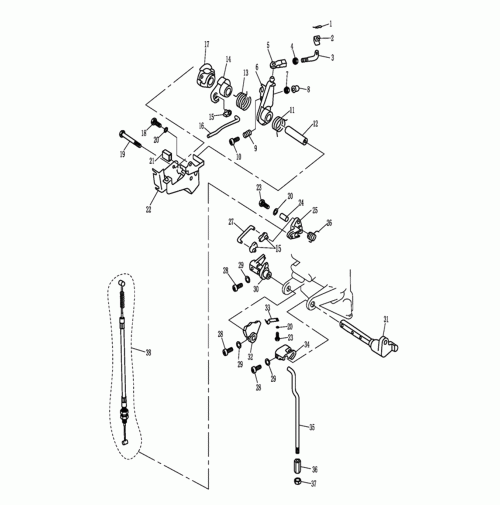

CONTROL SYSTEM - 2 Strock for T9.9 T15
SN.
| Parsun Part No.
| Description-English
| Yamaha Part No.
|
| 1 | F25-05160002 | SPRING 1 | 0.00
|
2
| T15-04040003 | FIXED PART, PULSER COIL | 63V-41223-00
|
3
| T15-04040004 | LINK, PULSER COIL | 63V-41238-00
|
4
| GB/T6170-M5 | NUT M5 | 95380-05600
|
5
| T15-04040005 | TIE-IN, PULSER COIL | 682-41237-00
|
6
| T15-04030101 | ROCKER, THROTTLE ACTUATOR | 63V-41631-00
|
7
| GB/T6170-M6 | NUT M6 | 95303-06600
|
8
| T15-04030103 | COVER, NUT | 688-44194-00
|
9
| T15-04030102 | SPRING | 90501-12M16
|
| 10 | GB/T818-M6x35 | SCREW M6x35 | 0.00
|
| 11 | T15-04030007 | SPRING, ROCKER ARM | 90508-16M37
|
| 12 | T15-04030003 | BUSH, THROTTLE ACTUATOR | 90387-06M50
|
| 13 | T15-04030006 | SPRING, DRIVE WHEEL | 90508-16M37
|
| 14 | T15-04030005 | PULLEY, THROTTLE ACTUATOR | 63V-41283-00
|
| 15 | F15-07000016 | JOINT, THROTTLE ACTUATOR | 661-41262-02
|
| 16 | T15-04000014 | LINK ROD, THROTTLE | 63V-41211-00
|
| 17 | T15-04030004 | DRIVE PULLEY, THROTTLE | 6B4-41638-00
|
| 18 | GB/T5783-M6x12 | BOLT M6x12 | 90119-06M73
|
| 19 | GB/T5782-M6x65 | BOLT M6x65 | 0.00
|
| 20 | GB/T97.1-6
| WASHER 6
| 92995-06600
|
| 21 | T15-04030002
| JACEKT, THROTTLE ACTUATOR
| 689-44194-00
|
| 22 | T15-04030001
| PLATE, THROTTLE ACTUATOR
| 63V-14497-02
|
| 23 | GB/T9074.14-M6X20
| BOLT M6x20
| 97095-06020-00
|
| 24 | T15-04000022
| WASHER, DETENT
| 90387-06M06
|
| 25 | T15-04000020
| ROCKER B, DETENT
| 6B4-15746-00
|
| 26 | T15-04000021
| SPRING, DETENT
| 90508-08M39
|
| 27 | T15-04000019
| LINK ROD, DETENT
| 6L2-15747-00
|
| 28 | GB/T818-M5x12
| SCREW M5x12
| 97885-05012
|
| 29 | GB/T97.1-5
| WASHER 5
| 6Y1-24329-00
|
| 30 | T15-04000018
| ROCKER A, DETENT
| 63V-44122-00
|
| 31 | T15-04000600
| SHIFT ROD ASSY
| 63V-44123-00
|
| 32 | T15-04000700
| BRACKET, SHIFT ROD
| 0.00
|
| 33 | T15-04000016
| SPRING, SHIFT LEVER
| 0.00
|
| 34 | T15-04000017
| BASE, SHIFT ROD
| 63V-44121-01
|
| 35 | T15-04000029
| SHIFT ROD
| 63V-44143-01
|
| 36 | F15-05000035
| NUT, PLUNGER
| 63V-15746-00
|
| 37 | GB/T6170-M6
| NUT M6
| 95303-06600
|
| 38 | T15-04000800A | DETENT CABLE ASSY | 0.00
|
