ELECTRICAL - 2 Strock for T9.9 T15
- Brand: Yamaha
- Product Code: ELECTRICAL - 2 Strock for T9.9 T15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

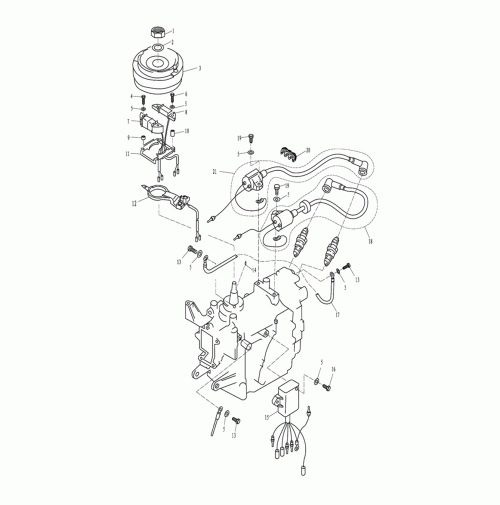

ELECTRICAL - 2 Strock for T9.9 T15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T15-04000012 | NUT, FLY WHEEL | 90170-12066 |
| 2 | T15-04000011 | WASHER, FLY WHEEL | 90201-12472 |
| 3 | T15-04000400 | FLYWHEEL ASSY | 63V-85550-10 |
| 4 | GB/T5783-M6X35 | BOLT M6x35 | 0.00 |
| 5 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 6 | GB/T5782-M6X40 | BOLT M6x40 | 0.00 |
| 7 | T15-04000300 | LIGHT SUPPLY COIL | 63V-85533-00 |
| 8 | T15-04000200 | CHARGE COIL ASSY | 63V-85520-00 |
| 9 | T15-04000008 | WASHER A, LOWER | 90387-06M24 |
| 10 | T15-04000009 | WASHER B, UPPER | 90387-06M53 |
| 11 | T15-04000007 | FIXED PLATE, CHARGE COIL | 63V-41611-00 |
| 12 | T15-04040000 | PULSER COIL ASSY | 63V-85580-00 |
| 13 | GB/T5783-M6x12 | BOLT M6x12 | 90119-06M73 |
| 14 | F15-07000004 | WOODRUFF KEY, FLY WHEEL | 90280-05013 |
| 15 | T15-04000900 | CDI UNIT ASSY | 63V-85540-00 |
| 16 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 17 | T15-04000024 | EARTH WIRE | 0.00 |
| 18 | T15-04001200 | IGNITION COIL ASSY B | 63V-85570-00 |
| 19 | GB/T5783-M6x18 | BOLT M6x18 | 0.00 |
| 20 | F25-05000016 | CLAMP, NYLON | 0.00 |
| 21 | T15-04001100 | IGNITION COIL ASSY A | 63V-85570-00 |
