INTAKE - 2 Strock for T9.9 T15
- Brand: Yamaha
- Product Code: INTAKE - 2 Strock for T9.9 T15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

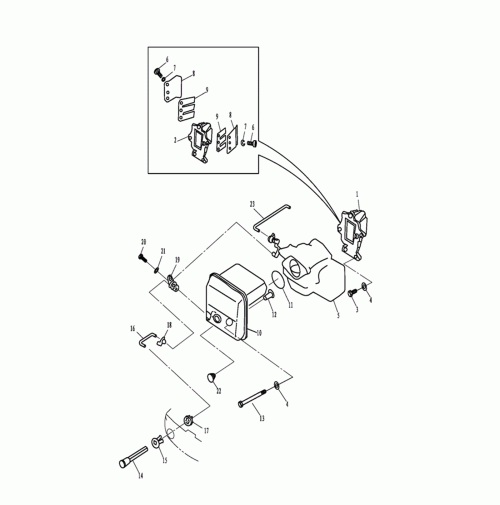

INTAKE - 2 Strock for T9.9 T15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T15-04050000 | INTAKE VALVE ASSY | 63W-13610-00 |
| T9.9-04050000 | INTAKE VALVE ASSY | 63V-13610-10 | |
| 2 | T15-04050100 | INTAKE VALVE SEAL SEAT | 0.00 |
| 3 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 4 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 5 | T15-04060000 | CARBURETOR ASSY | 63V-14301-00 |
| 6 | GB/T823-M3x6 | SCREW M3x6 | 0.00 |
| 7 | GB/T93-3 | WASHER, SPRING 3 | 0.00 |
| 8 | T15-04050002 | LIMITATIVE PLATE, VALVE | 0.00 |
| | T9.9-04050002 | LIMITATIVE PLATE, VALVE | 0.00 |
| 9 | T15-04050001 | PLATE, INTAKE VALVE | 0.00 |
| 10 | T15-04000500 | INTAKE SILENCER ASSY | 63V-14440-00 |
| 11 | JASO-F404-19-036 | O-RING 35.2x1.9 | 0.00 |
| 12 | T15-04000504 | TUBE, FLANGE | 90387-06M15 |
| 13 | GB/T5782-M6x115 | BOLT M6x115 | 0.00 |
| 14 | T15-03010001 | HANDLE, CHOKE | 6H4-41271-01 |
| 15 | F15-05010001 | BUSH, CHOKE | 689-41273-00 |
| 16 | T15-03010003 | LINKER, CHOKE S | 63V-41256-00 |
| 17 | T15-03010002 | RUBBER COLLAR, CHOKE | 0.00 |
| 18 | F15-07000016 | JOINT, THROTTLE ACTUATOR | 661-41262-02 |
| 19 | T15-03010004 | ROCKER, CHOKE | 63V-41252-00 |
| 20 | GB/T845-ST4.8x16 | SCREW 4.8x16 | 0.00 |
| 21 | GB/T96-5 | BIG WASHER 5 | 0.00 |
| 22 | T15-04000505 | PLUG, INTAKE SILENCER | 90480-12M25 |
| 23 | T15-04000015 | LINKER, CHOKE L | 63V-41257-00 |
