CYLINDER AND CRANKCASE - 2 Strock for T9.9 T15
- Brand: Yamaha
- Product Code: CYLINDER AND CRANKCASE - 2 Strock for T9.9 T15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

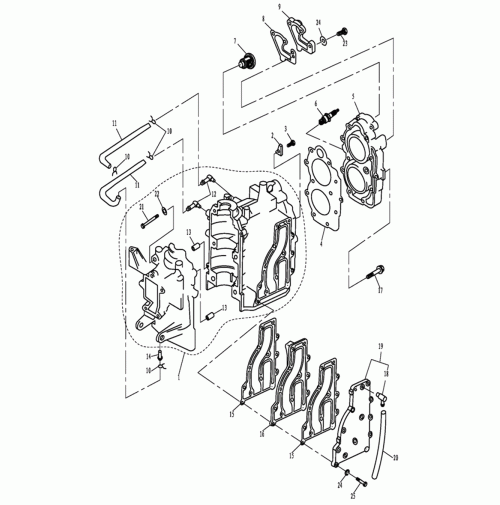

CYLINDER AND CRANKCASE - 2 Strock for T9.9 T15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | T15-07010000 | CRANKCASE ASSY | 63V-15100-00-94 |
| 2 | T15-04010103 | ANODE, CRANKCASE | 682-11325-00 |
| 3 | GB/T819.1-M5x15 | SCREW M5x15 | 0.00 |
| 4 | T15-04000100 | GASKET, CYLINDER HEAD | 63V-11181-A2 |
| 5 | T15-04000001 | CYLINDER COVER | 6E7-11111-01-94 |
| 6 | BPR7HS | SPARK PLUG BPR7HS | 0.00 |
| 7 | T15-04000010 | THERMOSTAT | 688-12411-11 |
| 8 | T15-04000003 | GASKET, THERMOSTAT | 682-12414-A1 |
| 9 | T15-04000004 | COVER, THERMOSTAT | 682-12413-00-1S |
| 10 | T15-04000013 | CLIP SPRING C | 90467-06016 |
| 11 | T15-04000005 | HOSE 7x2.5x212 | 90445-07M08 |
| 12 | T15-04010200 | PIPE, JOINT | 650-14485-03 |
| 13 | F15-00000006 | PIN 6x12 | 93606-12019 |
| 14 | T15-04010202 | PIPE, JOINT | 624-14485-00 |
| 15 | T15-04010002 | GASKET, EXHAUST COVER | 63V-41112-A0 |
| 16 | T15-04010003 | INNER COVER, EXHAUST | 63V-41111-00-1S |
| 17 | T15-04000002 | BOLT M7x1x35 | 90105-07M05 |
| 18 | F15-04000005 | PIPE, JOINT | 676-11372-00 |
| 19 | T15-04010500 | OUTER COVER ASSY | 0.00 |
| 20 | T15-04000006 | HOSE 5x10x330 | 90445-09104 |
| 21 | T15-04000031 | BOLT M8x60 | 90119-08MA8 |
| 22 | GB/T97.1-8 | WAHSER 8 | 92995-08100 |
| 23 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 24 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 25 | GB/T9074.14-M6X30 | BOLT M6x30 | 0.00 |
