STARTER - 2 Strock for T9.9 T15
- Brand: Yamaha
- Product Code: STARTER - 2 Strock for T9.9 T15
- Availability: Out Of Stock
- $0.00
- Ex Tax: $0.00
Qty

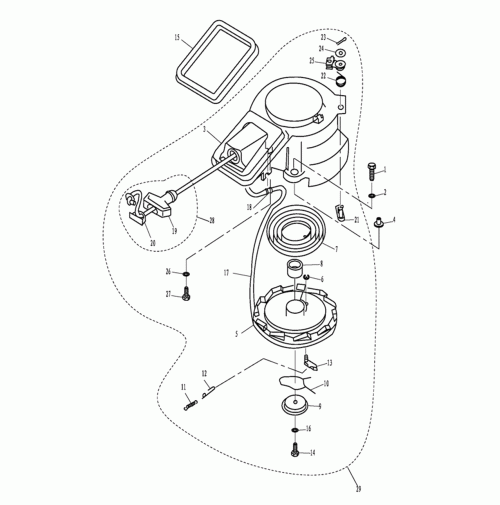

STARTER - 2 Strock for T9.9 T15
| SN. | Parsun Part No. | Description-English | Yamaha Part No. |
| 1 | GB/T9074.14-M6X20 | BOLT M6x20 | 97095-06020-00 |
| 2 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 3 | T15-04070100 | COVER, STARTER | 0.00 |
| 4 | T15-04070102 | BUSH, SHOULDER | 90387-06M05 |
| 5 | F15-07130201 | WHEEL, START-UP | 63V-15714-00 |
| 6 | GB/T896-8 | CIRCLIP 8 | 99001-08600 |
| 7 | F15-07130107 | SPRING, VOLUTE | 63V-15713-00 |
| 8 | T15-04070006 | WASHER | 63V-15753-00 |
| 9 | F15-07130001 | PLATE, DRIVE | 63V-15716-00 |
| 10 | F15-07130002 | SPRING, DRIVE PLATE | 63V-15705-01 |
| 11 | F15-07130203 | SPRING, PAWL | 63V-15767-00 |
| 12 | F15-07130204 | LINK, PAWL | 63V-15784-01 |
| 13 | F15-07130202 | PAWL, DRIVE | 63V-15741-00 |
| 14 | GB/T5783-M6x16 | BOLT M6x16 | 0.00 |
| 15 | T15-04070005 | SEAL, FROTHY RUBBER | 63V-15762-00 |
| 16 | GB/T97.1-6 | WASHER 6 | 92995-06600 |
| 17 | F15-07130205 | START ROPE 4X1.78 | 96890-44373 |
| 18 | F4-04130013 | BUSH, START ROPE | 63V-15764-00 |
| 19 | F4-04130101 | STARTER HANDLE | 6G1-15755-00 |
| 20 | F4-04130102 | HANDLE COVER, STARTER | 0.00 |
| 21 | T15-04070001 | DETENT | 63V-15794-00 |
| 22 | T15-04070002 | SPRING, DETENT | 63V-15734-00 |
| 23 | GB/T91-1.6x12 | COTTER PIN 1.6x12 | 0.00 |
| 24 | T15-04070004 | WASHER, DETENT | 63V-15726-00 |
| 25 | T15-04070003 | ROCKER, DETENT | 63V-15748-00 |
| 26 | GB/T96-5 | BIG WASHER 5 | 0.00 |
| 27 | GB/T84.5-ST4.8x12 | ||
| 28 | F4-04130100 | STARTER HANDLE ASSY | 6G1-15755-00 |
| 29 | T15-04070000 | STARTER ASSY | 0.00 |
